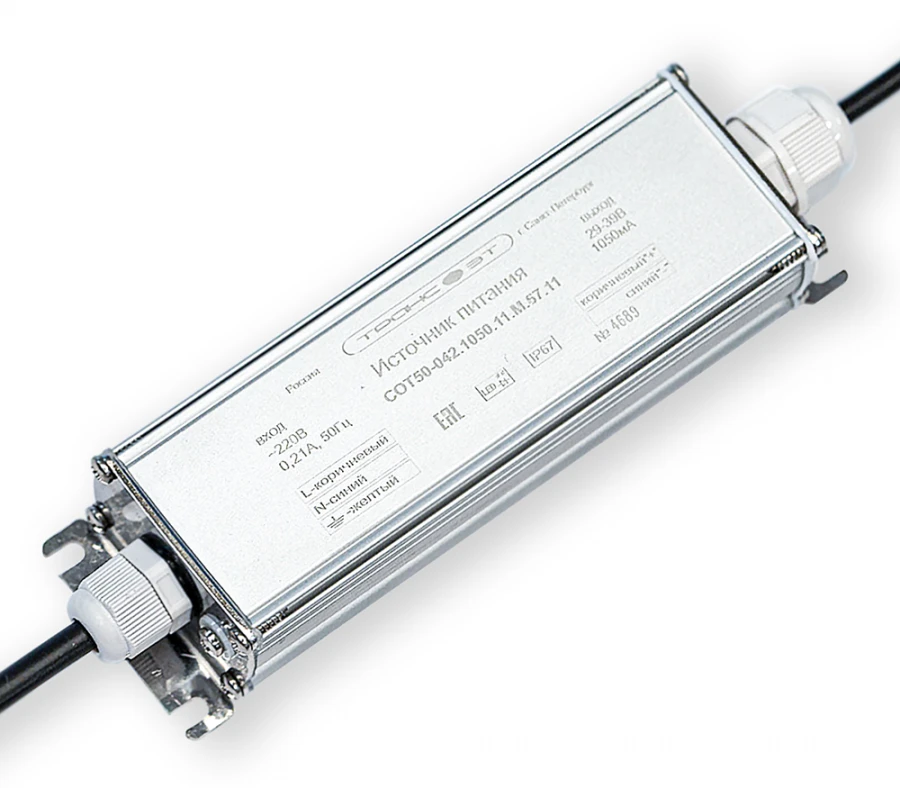

Power supply of LED matrix SOT50-042.1050.11.M.67.11

Power Supply Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for supplying stabilised current to LED matrixes

Technical Specifications

Warranty	5 years
EMC 9 kHz - 30 MHz	Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"
Degree of protection of the shell	IP 67
Dimensions of the source (DxWxH) mm	170 x 46,4 x 32
Weight, max.	0.195 kg
Temperature protection threshold	55±5 °C
Temperature protection	Got it
Protection against output voltage overshoot	Got it
Protection when AC input voltage 380 Veff is applied	Got it
Provides light ripple factor, not more than	3 %
Electrical insulation strength (input-output), effective value	Weff 1500.
Galvanic isolation input - output	Got it
Maximum load power	45 W
Operating range of output voltage	29...39 V
Temperature deviation of output current value in the operating temperature range, not more than	2 %
Output current	mA 1050±5%
efficiency, at least	89 %
Current consumption	0.23 A
Input voltage frequency	50±4%
Maximum allowable AC input voltage	Weff 400.
AC input voltage limit range	90...270 V
AC input voltage operating range	Weff 176-264.
Country of manufacture	Russia

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
