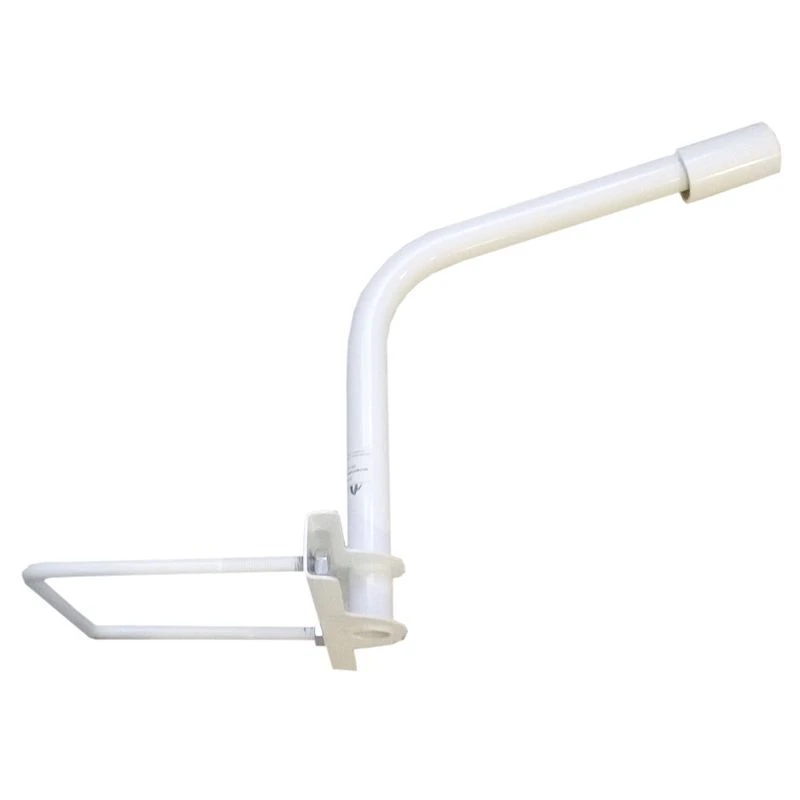

Bracket for luminaire type K1P: 0, 3(0, 35)-0, 35(0, 5); 0, 3(0, 35)-0, 35(0, 5)-1(2)-0, 12*0, 6

Attachable brackets are designed for installation of street lamps. The brackets are installed on any support with the help of bandage tape or fixed to the wall of a building or structure with the help of anchor bolts. The mounting dimension for the luminaire is Ø 48mm. Unit designations of the product KxP-N-L-B-Y-X :
K - bracket;
x - number of seats;
P - method of installation as an attachment;
H - height of the bracket in metres;
L - extension of the bracket in metres;
B - angle of inclination of the landing place for the luminaire relative to the horizontal plane can be 15, 30, 45, 60 degrees, by default the angle is 15 degrees and is not specified;
Y - number of clamps, not specified - for wall mounting or support with bandage tape;
X - C*D type of bracket attachment (C - clamp diameter in m , D - linear dimensions of the clamp in m), not specified - for wall fixing or attachment to the support with a bandage tape.
