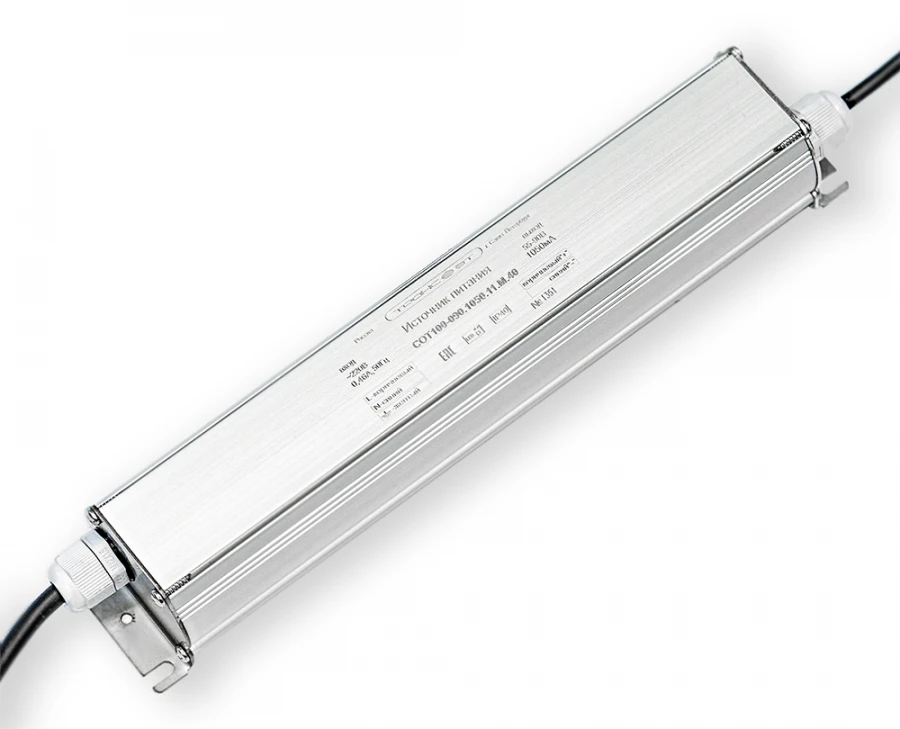

Power supply of LED matrix SOT100-090.1050.11.M.40

Power Supply Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for supplying stabilised current to LED matrixes

Specifications

Country of manufacture Russia

AC input voltage operating range Weff 176-264.

AC input voltage limit range 90...270 V

Maximum allowable AC input voltage Weff 400.

Input voltage frequency 48...60

Power factor, not less than 0.95

Current consumption 0.46 A

efficiency, at least 91 %

Output current mA 1050±5%

Temperature deviation of output current value in the operating temperature range, not more than 3 %

Operating range of output voltage 55...90 V

Maximum load power 94.5 W

Galvanic isolation input - output Got it

Electrical insulation strength (input-output), effective value Weff 1500.

Provides light ripple factor, not more than 1 %

Protection when AC input voltage 380 Veff is applied Got it

Protection against output voltage overshoot Got it

Temperature protection Got it

Temperature protection threshold 55±5 °C

Weight with wires, not more 0.317 kg

Dimensions of the source (DxWxH) mm 253 x 46,4 x 40

Degree of protection of the shell IP 40

EMC 9 kHz - 30 MHz Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Warranty 5 years

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
