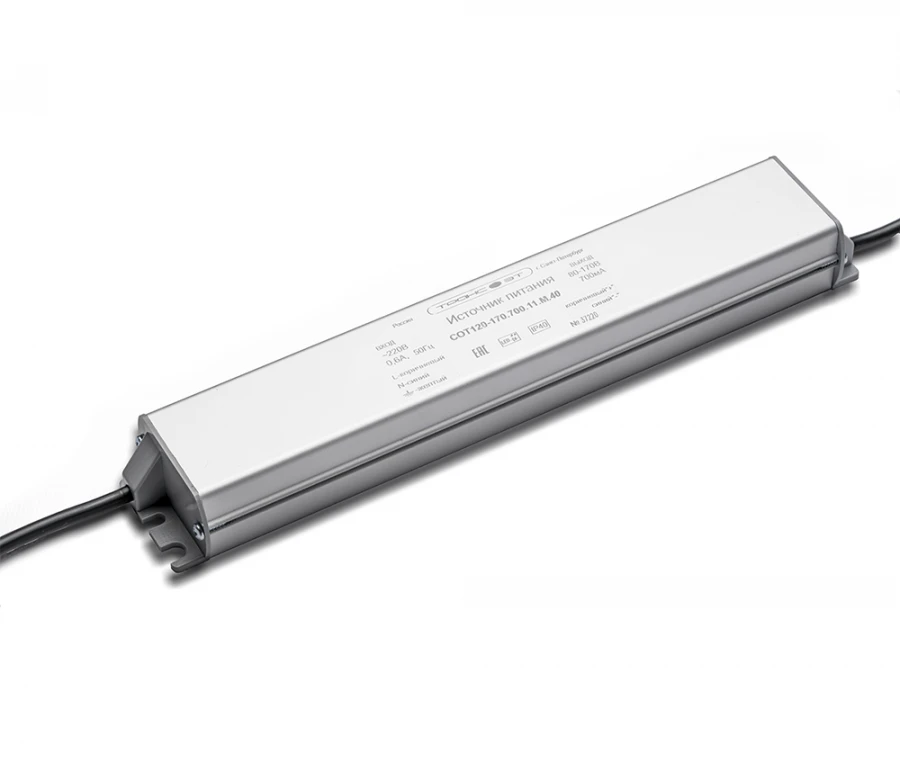

Power supply for LED matrix SOT120-085.1400.11.M.40

Power Supply Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power supply of LED matrix SOT120-170.700.11.M.40 Power supply for LED matrix SOT120-115.1050.11.M.40

Designed for supplying stabilised current to LED matrixes

Technical Specifications

Country of manufacture	Russia
AC input voltage operating range	Weff 176-264.
AC input voltage limit range	90...270 V
Maximum allowable AC input voltage	Weff 400.
Input voltage frequency	48...60
Power factor, not less than	0.97
Current consumption	0.6 A
efficiency, at least	91 %
Output current	mA 1400±5%
Temperature deviation of output current value in the operating temperature range, not more than	3 %
Operating range of output voltage	45...85 V
Maximum load power	119 W
Galvanic isolation input - output	Got it
Electrical insulation strength (input-output), effective value	Weff 1500.
Provides light ripple factor, not more than	1 %
Protection when AC input voltage 380 Veff is applied	Got it
Protection against output voltage overshoot	Got it
Temperature protection	Got it
Temperature protection threshold	55±5 °C
Weight with wires, not more	0.33 kg
Dimensions of the source (DxWxH) mm	253 x 46,4 x 40
Degree of protection of the shell	IP 40
EMC 9 kHz - 30 MHz	Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"
Warranty	5 years

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
