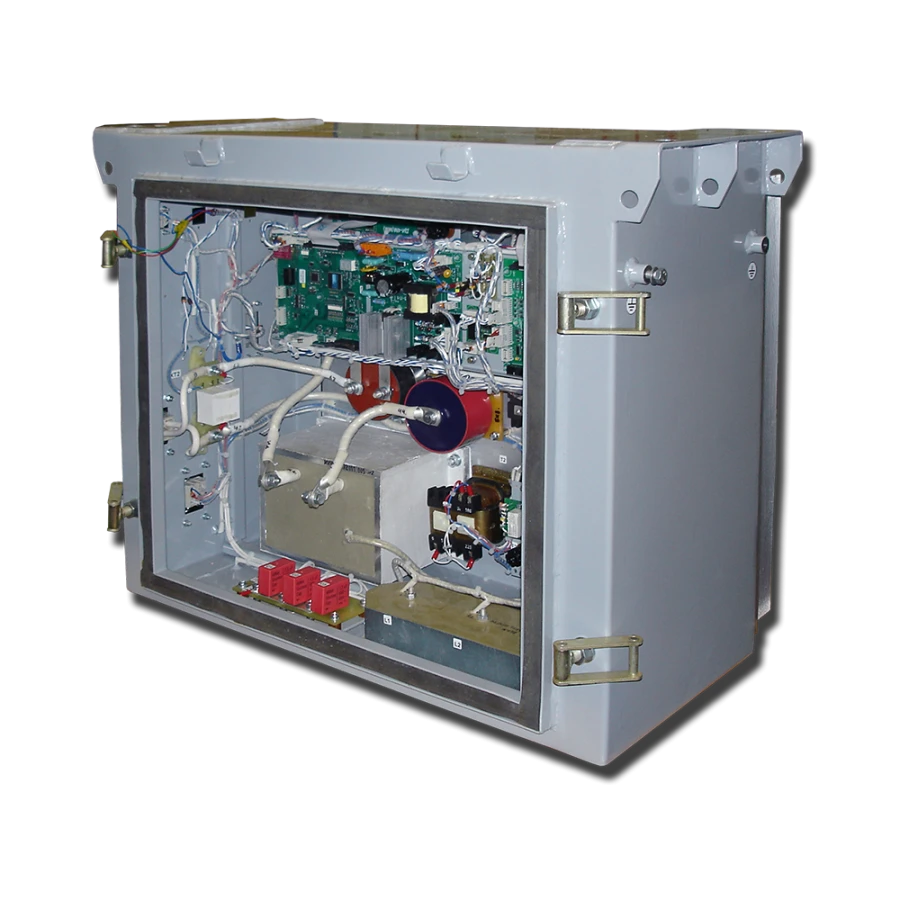

Power Converter for Air Conditioning System PCh-5-02M-U2 for Metro Trains

Static Power Converters

Manufacturer: GAMEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

PCH-5-02M-U2 is designed to ensure the operation of the air conditioning system of the driver's cabin of metro cars of the 81-775/776/777 series manufactured by JSC "Metrowagonmash" on the metro trains of the new generation "Moscow 2020". In addition to the cars of the Moscow Metro, PCh-5-02M-U2 is installed on the 81-765.B/766.B/767.B series cars of the Baku Metro. IF-5-02M-U2 is placed in a metal cabinet, which is installed in the undercar space on the head cars, one per car.

Power supply of the IF-5-02M-U2 is carried out from the on-board DC network of the car, working in buffer with a battery, with a nominal voltage of 80V.

Specifications

Overall dimensions (DxWxH)

720×446×579 mm

Weight

100 kg

Number of channels

Power consumption

5.6 kW

Nominal input voltage

80 V

Rated current consumption

75 A

Input voltage variation range

50...90 V

Output power (Channel 2)

Flat grinder, Specialised grinder W

Output power (Channel 1)

5 kW

Linear nominal voltage (Channel 1)

380 V

Line nominal voltage (Channel 2)

220 V

Number of phases (Channel 1)

3 pcs

Number of Phases (Channel 2)

1 pcs

Rated current (Channel 1)

9.5 A

Rated current (Channel 2)

0.45 A

Starting current (Channel 1)

B1/B8 2100/900 MHz A

Inrush current (Channel 2)

0.6 A

Rated frequency of output voltage (Channel 1, 2)

SBVVBG

Frequency control range at start-up (Channel 1)

0...50

Frequency control range during operation (Channel 1)

25...50

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
