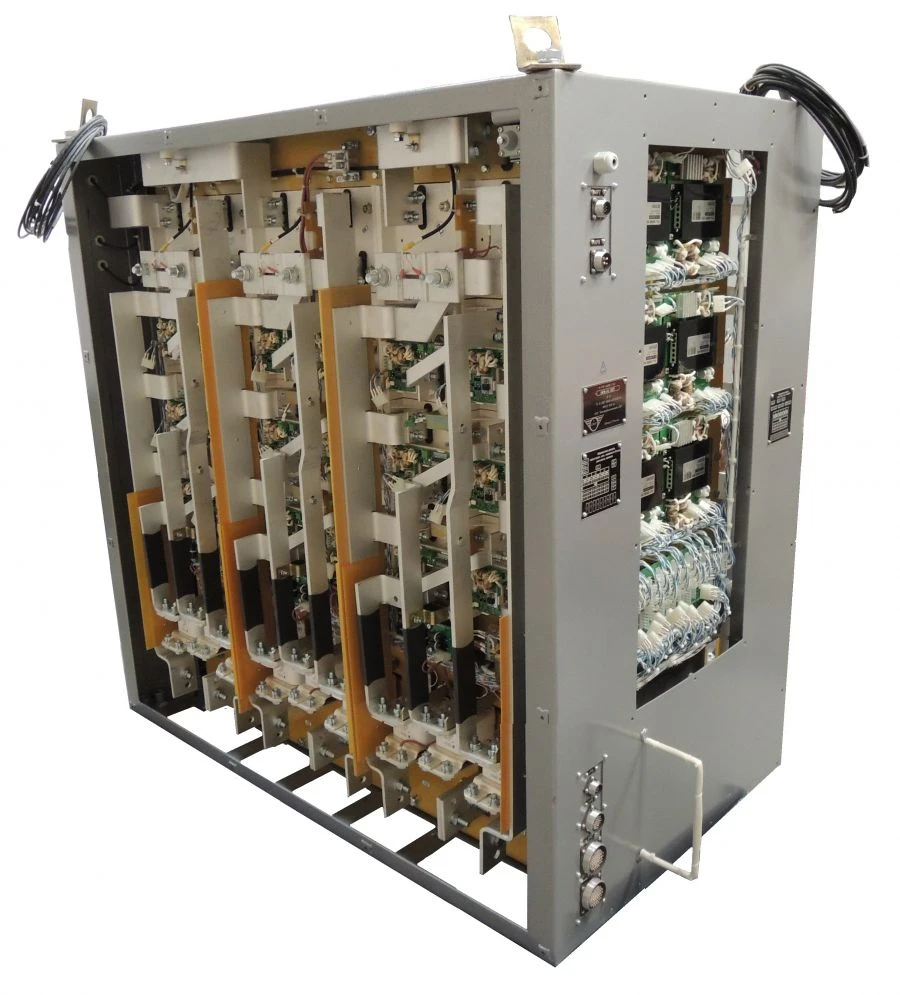

M-TPP-3600M-1-U2 Converter Technical Condition IEAL.435511.051

Available for Import

M-TPP-3600M-1-U2 Converter for Efficient Power Conversion Applications

Static Power Converters

Manufacturer: ELECTRORECTIFIER-SPC LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Code Converter M-TPP-3600M-1-U2 TU 16-2007 IEAL.435511.051 TU "Code Converter M-TPP-3600M-1-U2. SPECIFICATIONS" DESIGN DOCUMENTATION IEAL.435511.051 (VERSIONS IEAL.435511.051, IEAL.435511.051-01) "TRANSDUCER M-TPP-3600M-1-U2" SERIAL PRODUCTION. MULTI-CHANNEL CONVERTER WITH THREE-PHASE SUPPLY NETWORK CURRENT, DIRECT CURRENT AT THE OUTPUT, FORCED AIR COOLING, CAPACITY 3600 KW, MODERNISED.

THIS DEVICE IS DESIGNED TO CONVERT UNSTABLE IN MAGNITUDE AND FREQUENCY OF THREE-PHASE ALTERNATING VOLTAGE DIESEL GENERATOR DIESEL LOCOMOTIVE INTO SIX INDEPENDENTLY REGULATED DC VOLTAGES FOR SEPARATE POWER SUPPLY OF DIESEL LOCOMOTIVE DC TRACTION MOTORS.

Specifications

Number of channels

6 pcs

Rated output current of each channel

1100 A

Net weight

850 kg

Width

740 mm

Input line voltage

0...600 V

Output rectified voltage

0...800 V

Length

1250 mm

Height

1250 mm

Output power, kVA

3600

Nominal voltage

507 V

Degree of protection (IP)

IP20

AC input voltage

560 V

DC input voltage

110 V

Output voltage

507 V

Parallel work

2 x 3 phases

Remote monitoring

absent

Protection against reverse current

not applicable

Earthquake-proof version according to MSK-64 scale

not applicable

RFI interference level filter

absent

Isolation transformer at the rectifier input

not applicable

Isolation transformer of the standby input and rectifier

absent

Input power factor corrector

absent

Thermal compensation of battery recharge voltage

not applicable

Isolation monitoring of load output circuits

absent

Group spare parts

absent

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
