Available for Import

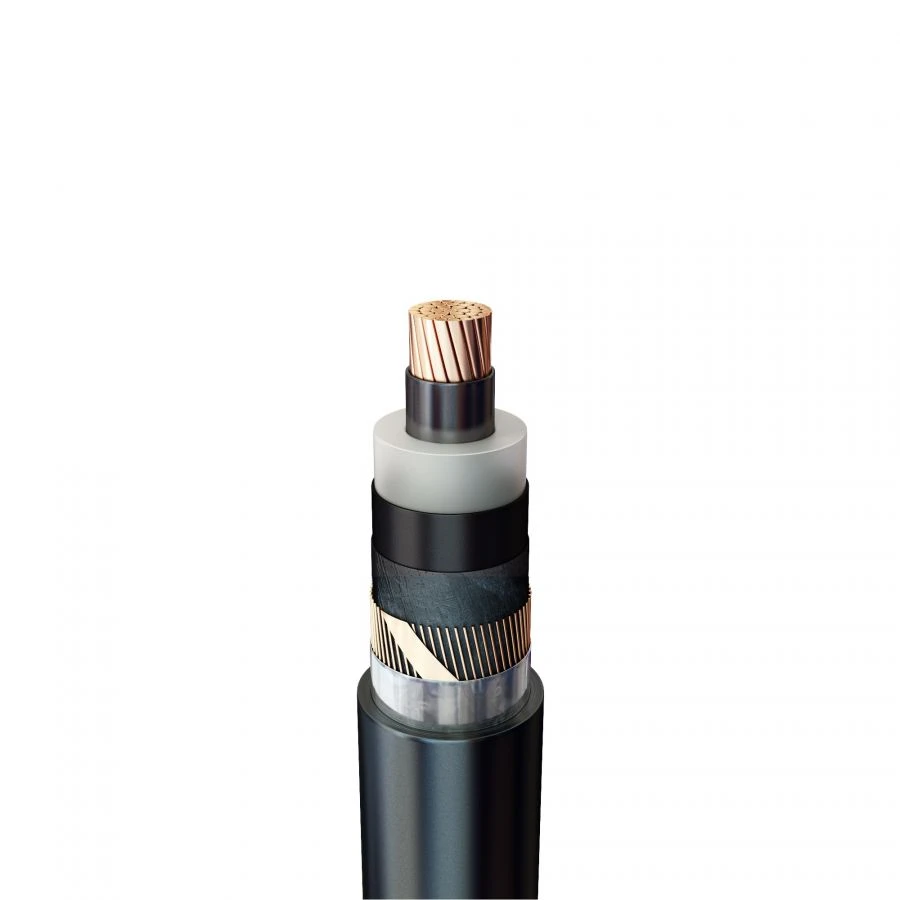

Power cable Pv... copper with LDPE insulation in PE sheathing
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Description
Power cables with cross-linked polyethylene insulation designed for transmission and distribution of electrical energy in stationary installations for rated alternating voltage of 6, 10, 15, 20 and 35 kV with nominal frequency of 50 Hz for networks with grounded or isolated neutral. Type of climatic execution of cables - UHL, T and XL.
Specifications
Number of cores
3 pc
Mark
PvP; PvPg; PvPg; PvPg; PvP2g; PvP2g; PvPu; PvPug; PvPug; PvPug; PvPug2g; PvPug2g; PvPu2g; PvP; PvPu
Material of conductive cores
Copper
Insulation material of conductive cores
Cross-linked polyethylene (LDPE / XLPE)
Availability of reservations
no
Outer sheath material (if no armor)
Polyethylene (PE / PE)
Material of protective hose (if armor is available)
Polyethylene (PE / PE)
Availability of metal screen
Armoured glass
Fire hazard class
?2.8.2.5.4
Cable cross-sectional shape
Round
Design of conductor core(s)
Multi-wire round (mc)
Nominal cross-section of conductive cores
630 mm2
Rated AC voltage
6; 10; 15; 20; 35 kV
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
