Available for Import

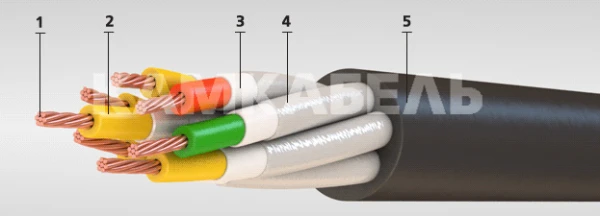

Ship cable NGRSHM 4x1,0-690 GOST 7866.1-76
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Sud cables are designed for operation on ships of the sea fleet of unlimited navigation area, river fleet, coastal and onshore and floating structures.
The cables are designed for operation at AC voltage up to 690 V with frequency up to 400 Hz or DC voltage up to 1200 V and for transmission of low power electrical control signals of AC voltage up to 400 V with frequency up to 1200 Hz or 500 V of DC voltage..
The cables are designed for operation at AC voltage up to 690 V with frequency up to 400 Hz or DC voltage up to 1200 V and for transmission of low power electrical control signals of AC voltage up to 400 V with frequency up to 1200 Hz or 500 V of DC voltage..
Specifications
Mark
NGRSM
Insulation material
Rubber based on natural and butadiene rubber
Sheath material
polychloroprene rubber
Core material
Copper
Operating AC voltage with frequency up to 400 Hz
690 V
Operating DC voltage
1200 V
Ambient temperature during cable operation
-40 to +45 °C
Number of cores
4 pc
Core cross section
10 mm2
Minimum permissible bending radius
5 cable diameters
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
