Portable X-ray fluorescence analyser MetExpert

Advanced Analysis Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

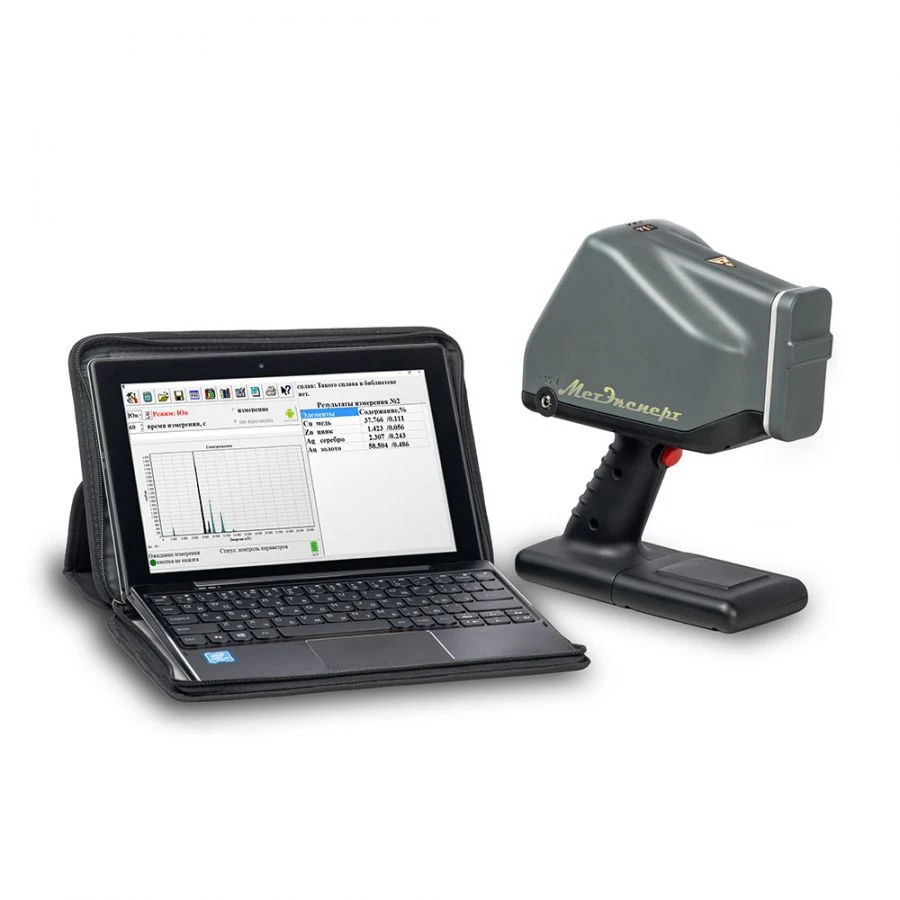

Analyser X-ray fluorescent portable "MetExpert" is designed to measure the mass fraction of chemical elements in metals and alloys, including aluminium, magnesium, stainless steel, structural, special and products based on them, in accordance with certified methods of measurement, as well as for the identification of chemical elements from sodium (Z=11) to americium (Z=95) in substances in solid, powdered and liquid state. The analyser is used at customs control, assay supervision, in analytical laboratories of industrial enterprises and research institutions.

Specifications

Power consumption, max. Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Supply mains voltage 220 V

DC battery pack voltage 18 V

Detection threshold of elements Mg, Al, Si, mass fraction, %, no more than 0.2 %

Detection threshold for elements P to Mo, mass fraction, %, not more 0.02 %

Element detection threshold from Ag to Am, mass fraction, %, not more 0.05 %

Absolute error limit in the range of element mass fraction measurement in "All elements" mode, from 0.2 to 1.0 on, %. ± 0.10 %

Absolute error limit in the range of element mass fraction measurement in "All elements" mode, over 1.0 to 10.0 on, %. ± 0.50 %

Absolute error limit in the range of element mass fraction measurement in "All elements" mode, over 10.0 to 100, %, % ± 0.70 %

Time of establishing the operating mode, min., not more 10

Measurement time 5...300

Absolute error limit in the range of measurement of mass fraction of elements titanium, vanadium, chromium, manganese, cobalt, n ± 0,70 %

Absolute error limit in the range of measurement of mass fraction of elements titanium, vanadium, chromium, manganese, cobalt, n ± 0,50 %

Number of chemical elements (search and identification) simultaneously, not less than 80

Continuous autonomous operation time with standard set of accumulator batteries, not less than, h. 8

Equivalent dose rate under conditions of normal operation, at any accessible point at a distance of 0.1 metres from the surface 1

Weight, kg, not more 2 kg

Wireless communication Bluetooth / WiFi

Monitor type Colour LCD TFT matrix

Mains frequency SBVVBG

Overall dimensions 210x100x260 mm

Range of atomic numbers of chemical elements to be analysed 11...95

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
