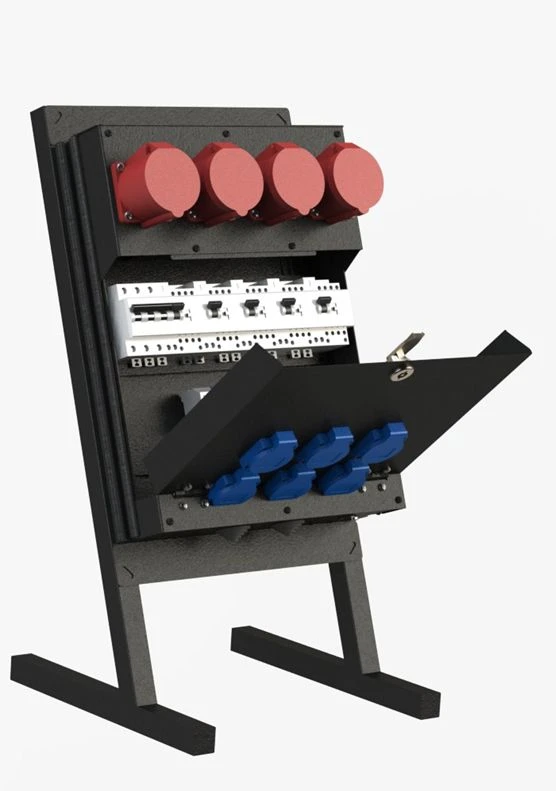

Portable/Wall-Mounted Combination Distribution Module with Sockets T P09.001 for Reliable Power Distribution

Combination of CEE and Schuko sockets in a floor-standing enclosure made of 1.5 mm steel with aluminium profile with a longitudinal slot for M10 nut on a steel profile slide. The enclosure can be dismantled from the slide and used as a hinged switchboard. The enclosure is coated with matte black polyester powder paint.

The column is equipped with a safety automatics located under the window with ultraviolet (UV) protection. The switchgear is designed for professional activities of construction, production, repair and other organisations associated with the simultaneous use of several units of power tools and electrical equipment. Specification of the hinged switchgear combination module T P09.001: Degree of protection: IP 41 Enclosure: Steel 1.5 mm Input: 35 mm² L terminal x 3 pcs.; 35 mm² N terminal x 1 pc.; 35 mm² PE terminal x 1 pc.

Connectors: Schuko PCE Blue x 6 pcs.; CEE 32A 5Pin 400V x 4 pcs. Automatics: Legrand 6kA 32A 1p x 3 pcs.; Legrand 6kA 32A....
