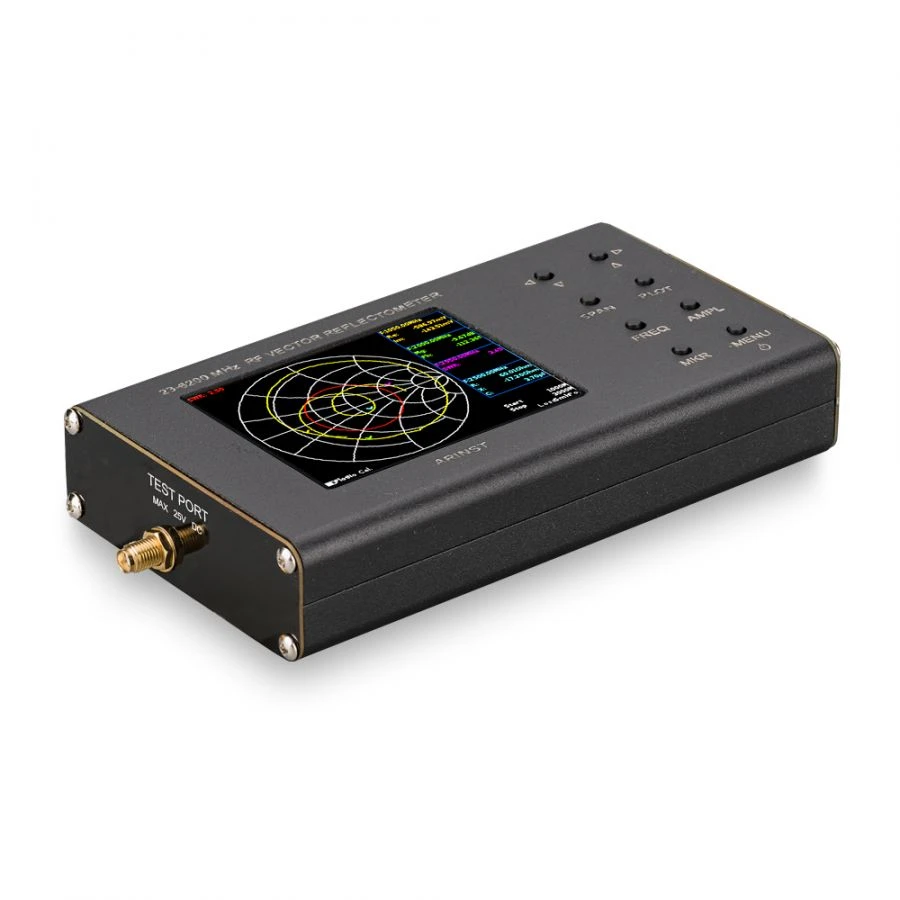

Portable vector circuit analyser ARINST VR 23-6200
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Portable vector circuit analyser (OTDR) ARINST VR 23-6200 is designed to measure the matching characteristics of passive and active radio devices (antennas, cables, filters, attenuators, amplifiers, etc.).
The device allows to measure the parameters of complex reflection coefficient, standing wave coefficient (VSWR), impedance, admittance, phase, losses and distance to the fault in the cable.
Analyzer ARINST VR 23-6200 is made in a rugged aluminium case in the form of a mobile device with autonomous power supply and is designed primarily for work directly at the site, because of its light weight and compact size has low power consumption. The analyser will be especially useful for companies working in the field of telecommunications, which are engaged in installation and maintenance of antennas, amplification of cellular communications, etc. With its help, service centres and repair teams can perform on-site RF analysis of cables and antennas during commissioning.
The device allows to measure the parameters of complex reflection coefficient, standing wave coefficient (VSWR), impedance, admittance, phase, losses and distance to the fault in the cable.
Analyzer ARINST VR 23-6200 is made in a rugged aluminium case in the form of a mobile device with autonomous power supply and is designed primarily for work directly at the site, because of its light weight and compact size has low power consumption. The analyser will be especially useful for companies working in the field of telecommunications, which are engaged in installation and maintenance of antennas, amplification of cellular communications, etc. With its help, service centres and repair teams can perform on-site RF analysis of cables and antennas during commissioning.
Specifications
Equipment
Portable vector reflectometer ARINST VR 23-6200
Operating frequency range
35...6200
Type of device
Vector analyzer
Interfaces
USB
Input connectors
SMA(male)
Screen availability
Got it
Screen diagonal, inches
3.2
Screen type
Touch
Battery availability
Got it
Battery capacity
2500
Battery life
2
Length
205
Width
125
Height
SBVVBG
Weight
400 g
Mark
Arinst
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
