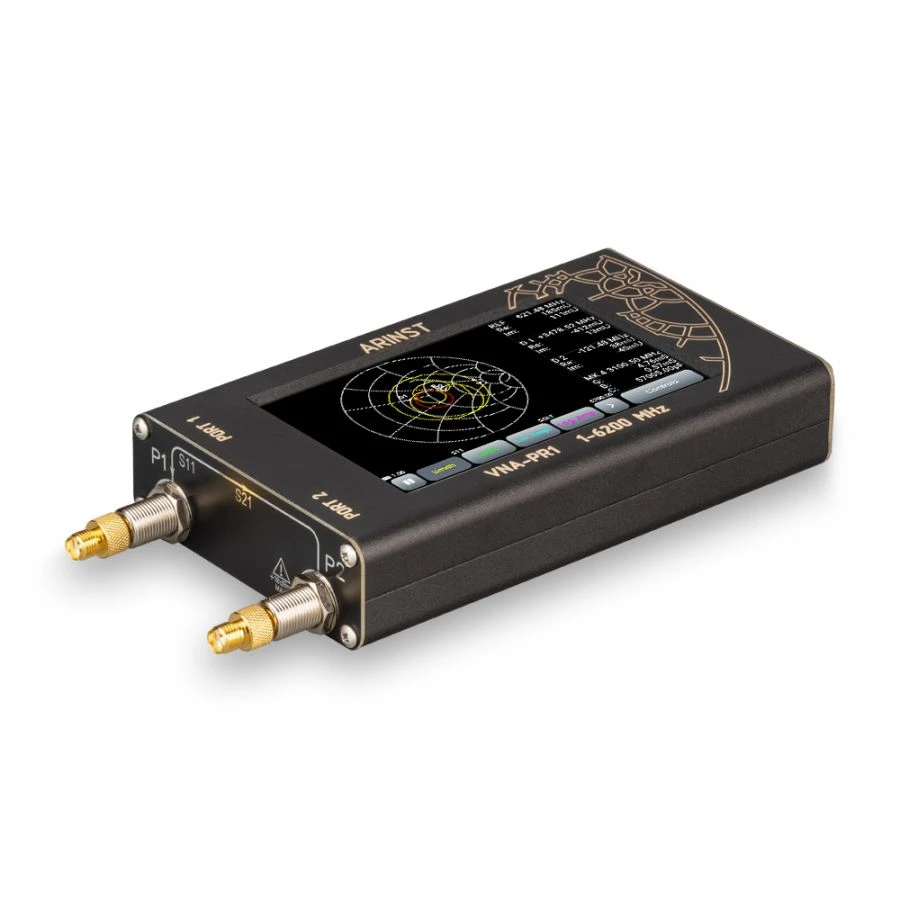

Portable two-port vector circuit analyser ARINST VNA-PR1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Portable two-port vector circuit analyser ARINST VNA-PR1 is designed for measuring the matching characteristics of passive and active radio devices (antennas, cables, filters, attenuators, amplifiers), checking the integrity of high-frequency cables, measuring their parameters and other amateur radio measurements.
The instrument measures S11 and S21 parameters, voltage standing wave ratio (VSWR), impedance, admittance, phase, group delay time (GDT), loss and distance to fault in the cable.
We provide free software under WINDOWS to control two-port vector circuit analysers ARINST VNA-PR 1, ARINST VNA-DL 1-8800 MHz.
The analyser is made in a rugged aluminium case as a mobile device with autonomous power supply and is designed primarily for work directly at the site, because of its low weight and compact size and low power consumption.
The instrument measures S11 and S21 parameters, voltage standing wave ratio (VSWR), impedance, admittance, phase, group delay time (GDT), loss and distance to fault in the cable.
We provide free software under WINDOWS to control two-port vector circuit analysers ARINST VNA-PR 1, ARINST VNA-DL 1-8800 MHz.
The analyser is made in a rugged aluminium case as a mobile device with autonomous power supply and is designed primarily for work directly at the site, because of its low weight and compact size and low power consumption.
Specifications
Equipment
Device
Operating frequency range
1...6200
Type of device
Vector analyzer
Interfaces
USB
Input connectors
SMA(male)
Screen availability
Got it
Screen diagonal, inches
4
Screen type
Touch
Battery availability
Got it
Battery capacity
5000
Battery life
2.5
Length
205
Width
125
Height
SBVVBG
Weight
400 g
Mark
Arinst
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
