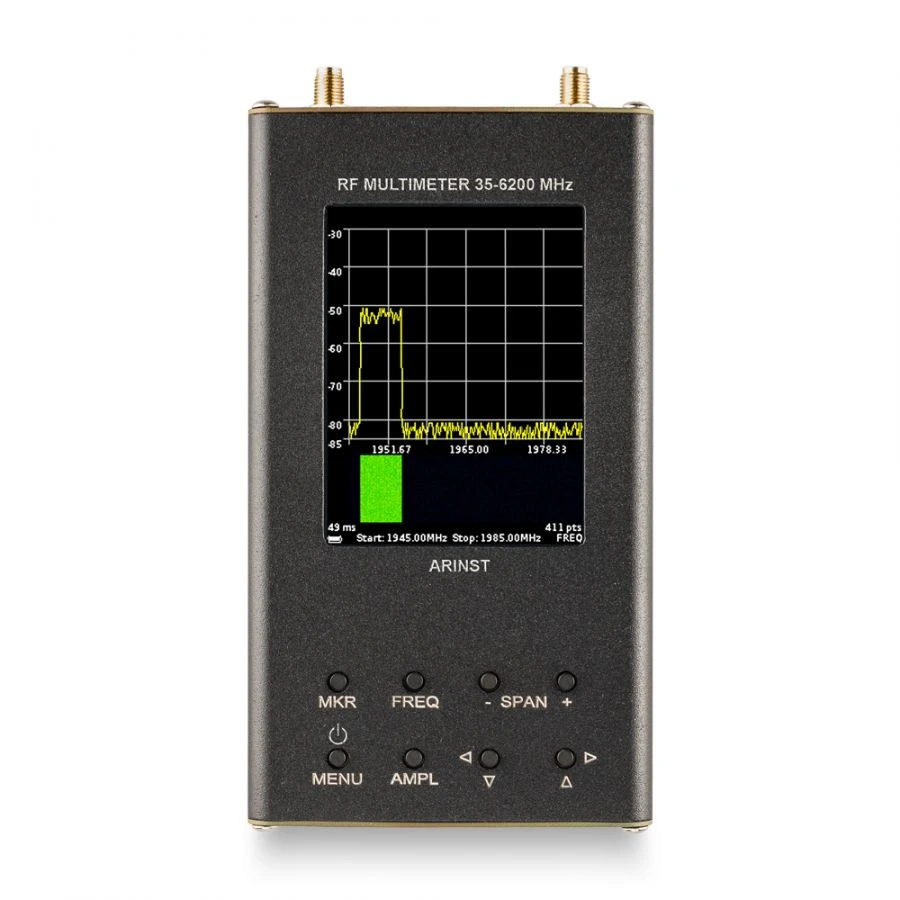

Portable spectrum analyser with tracking generator Arinst SSA-TG R2s
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The ARINST SSA TG R2s portable spectrum analyser is designed to display signal spectra in the frequency range 35-6200 MHz. The device is designed to determine the amplitude and frequency of spectral components included in the signal. The device displays spectra of signals of all common technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc. The signal is displayed on the screen of the device in the form of spectrum graph, frequency-time diagram, trace and diagram with "digital phosphor" technology. Built-in signal generator allows to measure the AFC of active and passive devices (amplifiers, repeaters, filters) and measure the reflection coefficient and standing wave coefficient (VSWR).
It is designed primarily for use in the field. The device with low power consumption is made in a lightweight and rugged case. With the help of the device service centres and repair crews can quickly carry out RF analysis during commissioning or repair work.
It is designed primarily for use in the field. The device with low power consumption is made in a lightweight and rugged case. With the help of the device service centres and repair crews can quickly carry out RF analysis during commissioning or repair work.
Specifications
Equipment
ARINST SSA-TG R2s Spectrum Analyser
Operating frequency range
35...6200
Type of device
Spectrum analyzer
Interfaces
USB
Input connectors
SMA(male)
Screen availability
Got it
Screen diagonal, inches
3.2
Screen type
Touch
Battery availability
Got it
Battery capacity
2500
Battery life
3
Length
205
Width
125
Height
SBVVBG
Weight
400 g
Mark
Arinst
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
