Portable spectrum analyser Arinst SSA Lite R2
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
This configuration differs from the PRO version by the absence of additional adapters and external attenuator for 30 dB.

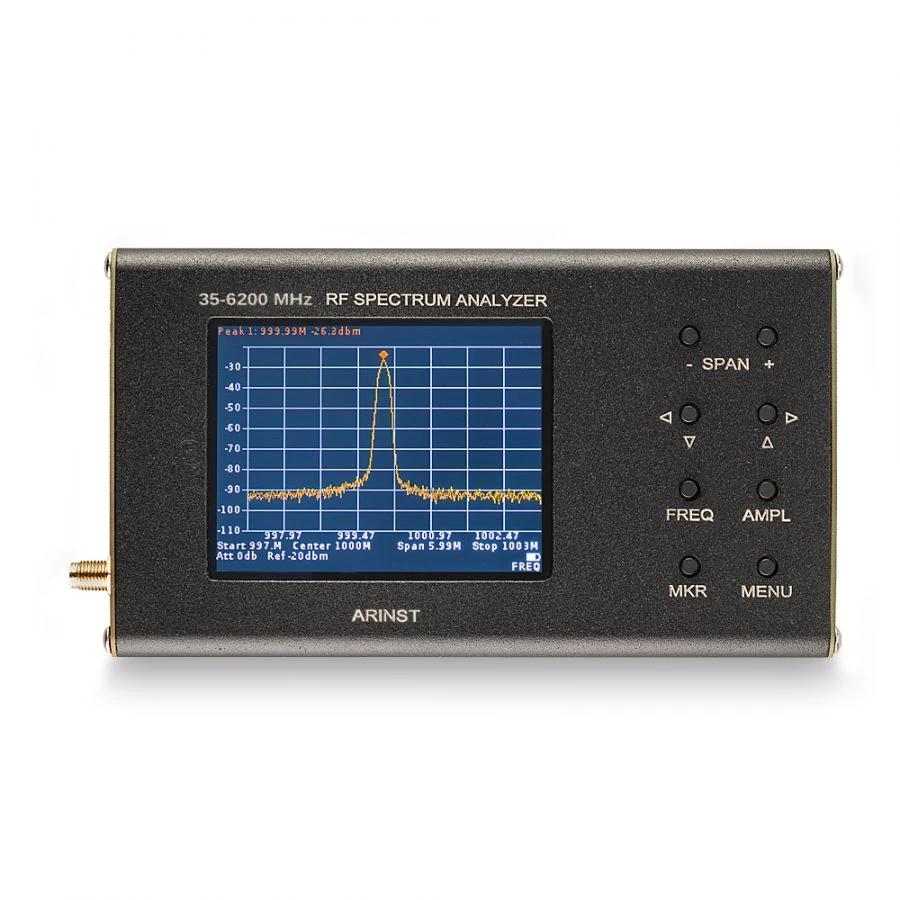

Portable spectrum analyser Arinst SSA R2 is designed to display signal spectra in the frequency range from 35 to 6200 MHz. The device allows you to determine the amplitude and frequency of spectral components included in the signal.
Spectrum analyser displays spectra of signals of all common technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
The ARINST SSA R2 spectrum analyser is designed primarily for field work, it has a very small weight and dimensions and is notable for its low power consumption. With its help, service centres and repair teams can perform on-site RF analysis for commissioning or repair work. In addition, the spectrum analyser is ideal for repair shops and radio amateurs.
Portable spectrum analyser Arinst SSA R2 is designed to display signal spectra in the frequency range from 35 to 6200 MHz. The device allows you to determine the amplitude and frequency of spectral components included in the signal.
Spectrum analyser displays spectra of signals of all common technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
The ARINST SSA R2 spectrum analyser is designed primarily for field work, it has a very small weight and dimensions and is notable for its low power consumption. With its help, service centres and repair teams can perform on-site RF analysis for commissioning or repair work. In addition, the spectrum analyser is ideal for repair shops and radio amateurs.
Specifications
Equipment
Arinst SSA R2 Portable Spectrum Analyser
Operating frequency range
35...6200
Type of device
Spectrum analyzer
Interfaces
Bluetooth, USB
Input connectors
SMA(male)
Screen availability
Got it
Screen diagonal, inches
3.2
Screen type
Touch
Battery availability
Got it
Battery capacity
2000
Battery life
4
Length
205
Width
125
Height
SBVVBG
Weight
400 g
Mark
Arinst
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
