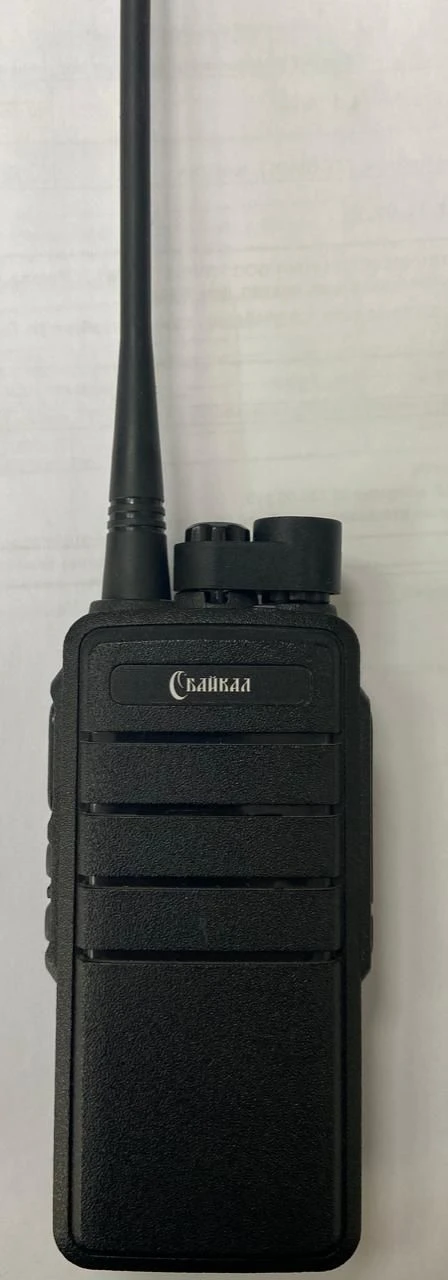

Portable radio station Baikal-100 VSTDR
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Radio operation modes: analogue; digital
Communication standard DMR
Frequency range, MHz - 146-174; 400-470
Number of channels, pcs. - 32
Frequency grid pitch in analogue mode, (programmable), kHz - 12.5/25
Receiver sensitivity at signal-to-noise ratio at 12 dB SINAD, µV - 0.25
Transmitter output power (programmable), W - 5; 10
Suppression of out-of-band emissions, dB, not less than 65
Rated output sound power at a load of 16 Ohm, mW 1000
Supply voltage, V 7,4
Maximum deviation of supply voltage, % ± 20
Degree of protection IP IP54
Battery type Li-Ion
Battery capacity, mAh 3000
Charger supply voltage, V 100-240
Mains frequency for charger connection, Hz 50-60
Overall dimensions (L×W×H), mm 160×65×45
Weight (without rechargeable battery), kg 0,194
Battery operation time (at 5-5-90 cycle), hr
- in digital mode 12 h
- in analogue mode 8 h
Battery charging time 3 h
Communication standard DMR
Frequency range, MHz - 146-174; 400-470
Number of channels, pcs. - 32
Frequency grid pitch in analogue mode, (programmable), kHz - 12.5/25
Receiver sensitivity at signal-to-noise ratio at 12 dB SINAD, µV - 0.25
Transmitter output power (programmable), W - 5; 10
Suppression of out-of-band emissions, dB, not less than 65
Rated output sound power at a load of 16 Ohm, mW 1000
Supply voltage, V 7,4
Maximum deviation of supply voltage, % ± 20
Degree of protection IP IP54
Battery type Li-Ion
Battery capacity, mAh 3000
Charger supply voltage, V 100-240
Mains frequency for charger connection, Hz 50-60
Overall dimensions (L×W×H), mm 160×65×45
Weight (without rechargeable battery), kg 0,194
Battery operation time (at 5-5-90 cycle), hr
- in digital mode 12 h
- in analogue mode 8 h
Battery charging time 3 h
Specifications
Communication modes
digital and analogue
Service life
3 a
Average MTBF
5000
Number of analog channels
32 pc
Power
10 W
Digital Standard
DMR
Conference call
Got it
Type
Portable radio station
Equipment
Radio, antenna, battery, packing, instruction manual
Height
160 mm
Width
65 mm
Station capacity, mAh
2000
Battery type
Li-Ion
Overall dimensions
160×65×45 mm
communication range
5
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
