Available for Import

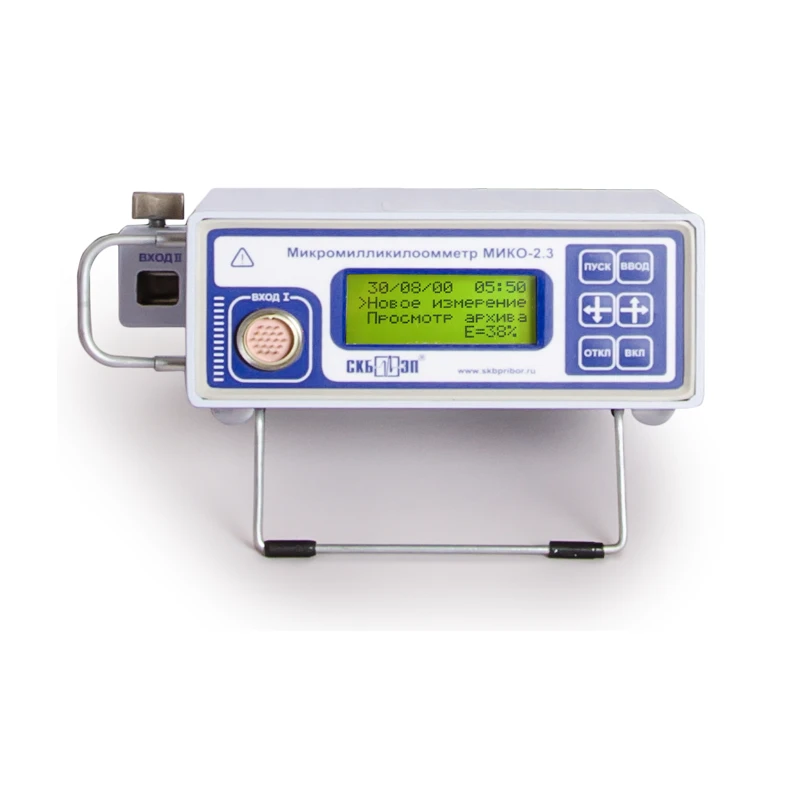

Portable Micro-Resistance Meter MIKO-2.3 for Electrical Resistance Measurement

Digital Ohmmeters

Manufacturer: SKB EP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The universal device is a portable mini-laboratory, allowing to cover all the tasks of resistance measurement in electrical equipment, as it works in four modes: "micro-ohmmeter", "milli-ohmmeter", "kilo-ohmmeter", "thermometer".

It surpasses all foreign and domestic micro-ohmmeters in terms of weight and measuring current. The closest foreign micro-ohmmeter with current 10÷500A has a weight of 7.5 kg, MIKO-2.3 with a weight of only 2.7 kg gives out a current of 1000A. The high current burns oxide films formed on the contacts and gives a significant error in resistance measurement.

A unique cable design that provides automatic start of one or another mode of the appliance.

Four minutes is sufficient to fully charge the battery.

Specifications

Resistance measurement range in "micro-ohmmeter" mode

0,1 ?? ÷ 0,1 ? ohm

Measuring current

10 ÷ 1 000 ? A

Accuracy

±0,2 % %

Resistance measurement range in "milliohmmeter" mode

100 ?? ÷ 1 k? ohm

Measuring current

0,5 ÷ 5 ? A

Resistance measurement range in "kilo-ohmmeter" mode

0,1 k? ÷ 300 k? ohm

Accuracy

±0,5 % %

Power supply (built-in battery)

??????????????

Battery charging time

5 min

Built-in memory

100 measurements

Instrument weight

2,7 kg

Environmental protection

IP20

Temperature range when operating the device

-20 °C to +40 °C °C

Inspection period

1 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
