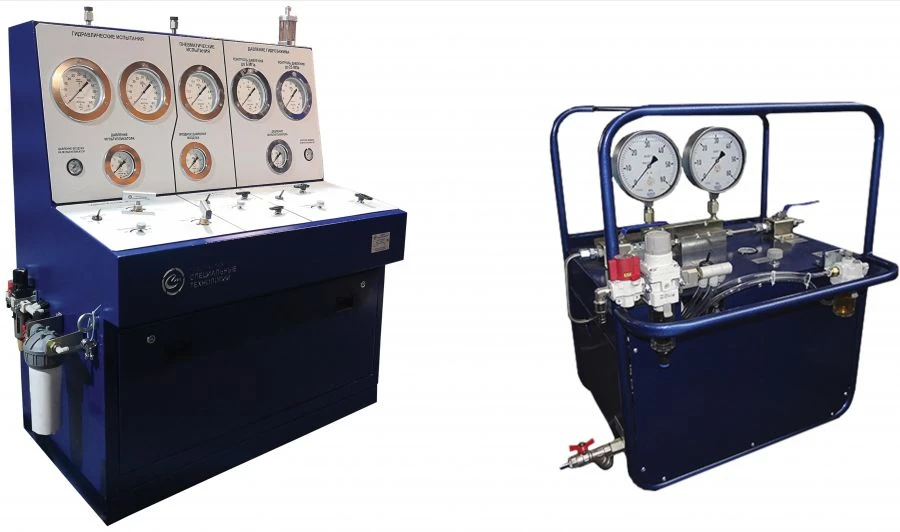

Pneumohydraulic power plants NS

Purpose
- pressure source for hydro- and pneumatic tests of pressure vessels;
- control panel of the test bench;
Functions
- stepless pressure control from 0.5 to 150 MPa;
- visual control by means of high-precision manometers;
- is used both independently and as a part of test benches;
- equipped with an additional channel for pneumatic tests (0.6 MPa) for leak tightness and for quick removal of water after the end of the test;
Options
- built-in computerised measuring and registering system ST-RS;
- built-in automatic registration unit;
- proportional clamping system (eliminates axial load on the product under test);
- additional high-pressure air channel for pneumatic testing;
- additional high-pressure hydraulic ducts;
- installation of air and water leakage measuring devices.
