Pneumatic impact bench USP-10

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

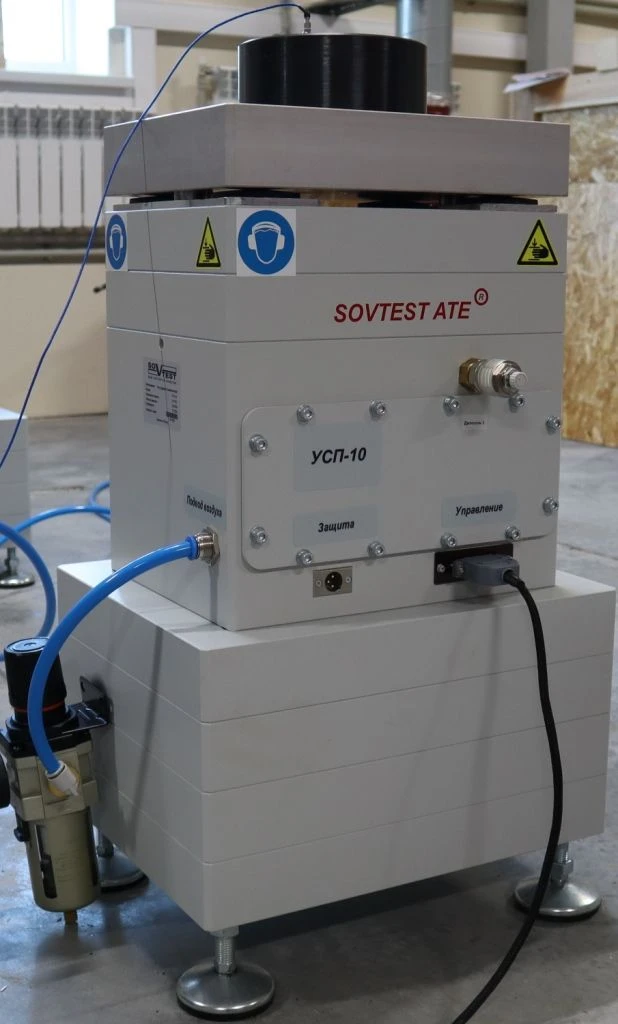

Stand is designed for testing various and products for strength and stability under the influence of mechanical shocks of single and repeated action in laboratory and industrial conditions. When testing products for impact strength and stability in the stand uses the principle of free fall. Tests are carried out to test the ability to resist the destructive effects of mechanical shocks and maintain their parameters within the values specified in standards and specifications.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

External dimensions (without profile gaskets), mm 420x340x673

Power supply, Hz SBVVBG

Power consumption, W 600 W

Power supply, V 220 V

Required area for stand installation, mm 450...550 mm

Maximum weight of the product under test, kg 10 kg

Stand weight, kg 340 kg

Beat repetition rate, minute 1...80

Shock pulse duration range, m/sec 0.8...20

Maximum acceleration, metres/second squared 500

Table size, mm 250...320 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
