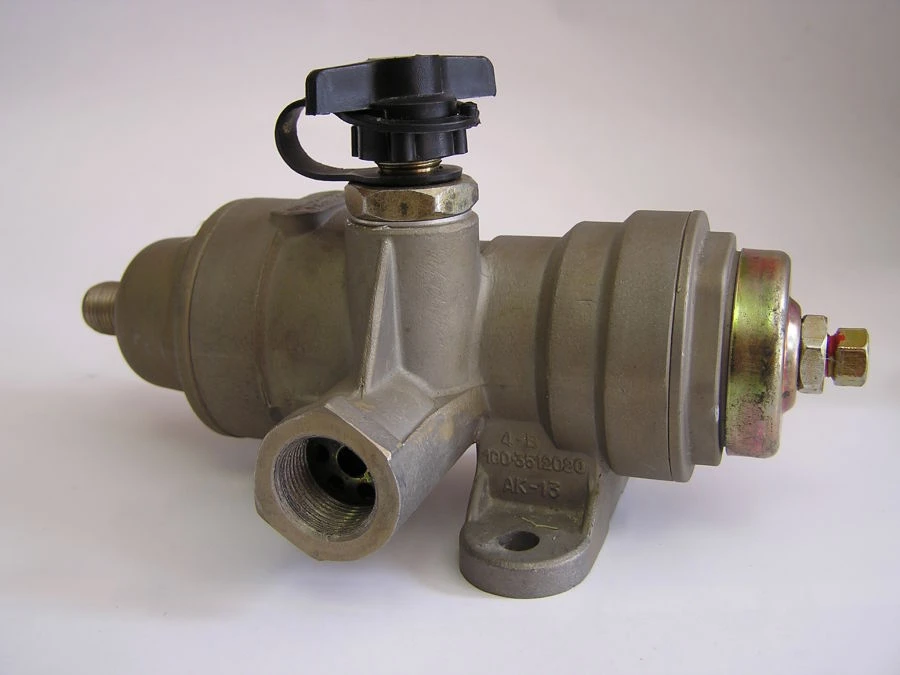

Pneumatic Brake System Pressure Regulator 100-3512010-10 for Automatic Pressure Maintenance

Pneumatic Brake Devices

Manufacturer:ROSSLAVL BRAKE SYSTEMS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The pressure regulator is designed for automatic maintenance of working pressure in the pneumatic brake drive system of a car within specified limits, as well as for protection of the pneumatic system of a car from contamination and overloading.

Specifications

Equipment

Pressure regulator - 1 pc. Transport plug - 2 pcs. Passport - 1 pc (when products are delivered in batches - in each transport package (box, crate, etc.)). Packaging - 1 pc.

Connection thread size: inflation outlet

16 mm

Connection thread size: inlet 1 and outlet 2

22 mm

Inlet air temperature, not more,

100 °C

Safety relief valve actuation pressure

1.2...1.55 MPa

Shut-off pressure, max.

7.8...8.2 MPa

Switching pressure, not less than

0.65...0.71 MPa

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00445/23

Operating medium

Compressed air, oil and water vapors may be present.

Environment

Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Maintenance of the machine

In accordance with the operating manual of the motor vehicle for which it is intended

Installation of the apparatus

In accordance with the vehicle manufacturer's documentation

Working pressure

0.8 MPa

Temperature range

-46...80 °C

Weight

1.17 kg

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
