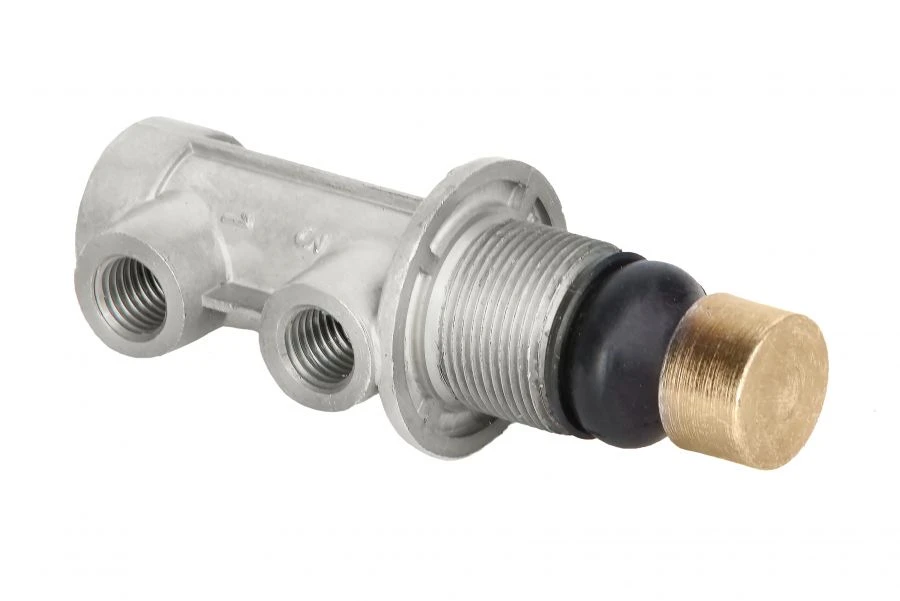

Pneumatic Valve for Forced Air Inlet - Model 100-3537110

Available for Import

Pneumatic Valve for Compressed Air Inlet - Model 100-3537110 for Spring Accumulator Systems

Pneumatic Brake Devices

Manufacturer: ROSSLAVL BRAKE SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The pneumatic crane is designed for forced inlet of compressed air. It can be used for pneumatic release of cylinders with spring energy accumulators of the spare and parking brake, for control of cylinders of the auxiliary (engine) brake, for control of transmission units and for other similar purposes.

Specifications

Equipment

Pneumatic crane - 1 pc. Transport plug - 3 pcs. Passport - 1 pc. Packing - 1 pc.

Assignment

Pneumatic crane is designed for forced inlet of compressed air. It is used for releasing spring energy accumulators of spare and parking brake, controlling auxiliary brake cylinders, transmission units, etc.

Weight

0.23 kg

Stroke of push button

5.1...6.6 mm

Maximum activation gain

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Operating medium

Compressed air, oil and water vapors may be present.

Environment

Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Maintenance of the machine

In accordance with the operating manual of the motor vehicle for which it is intended

Installation of the apparatus

In accordance with the vehicle manufacturer's documentation

Working pressure

0.8 MPa

Connection thread size of the air inlet connections

B1/B8 2100/900 MHz mm

Passing section diameter

4 mm

Temperature range

-46...80 °C

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Valve fitting thread size

26 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
