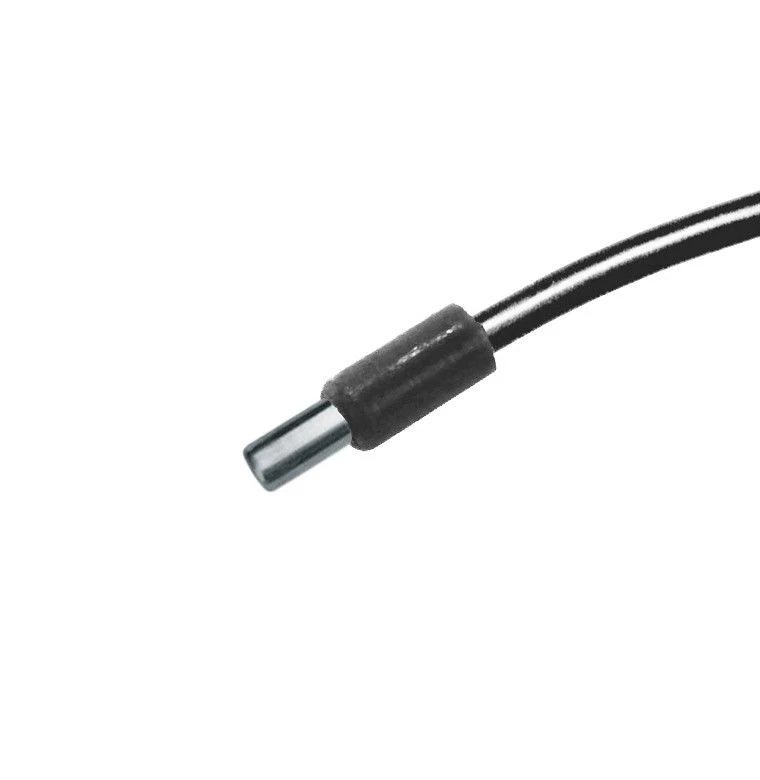

Platinum and Copper Resistance Temperature Sensor TCMr (TSPR)-K0 for Air and Non-Aggressive Gases

Resistance thermocouples with sensitive elements made of platinum TSPg or copper TSMg, design version K0 are designed to control the temperature of air and non-aggressive gases, massive products with installation in a "socket", such as electric motors, bearings, power radiators, semiconductor devices, etc. Thermal converters are designed for operation at ambient air temperature from minus 50 to plus 85 C, relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST15150-69.

By degree of protection against dust and water penetration thermal converters correspond to IP 67 according to GOST 14254-96. According to the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75. Do not expose thermal converters to shocks and falls.
