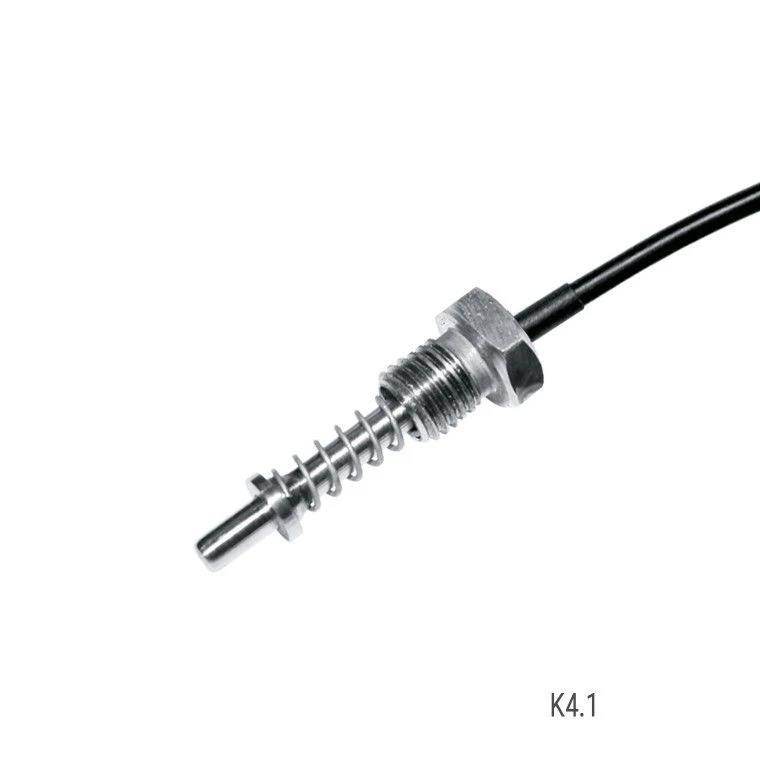

Resistance Temperature Sensors TCMr (TSPr) - K4.1 for Liquid Temperature Control

Resistance thermocouples with sensitive element made of platinum TSPg or copper TSMg, design version K4.1 are designed to control the temperature of liquid media, for example: water, oil and other measured working media, chemically non-aggressive and not destroying the material of the protective housing of the thermocouple; bulk media, for example, flour, sugar, grain, etc., as well as to control the temperature of the surface of rotating objects. GOST6651. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C (TSP) and from minus 50 to plus 85 C (TSM), relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa.

Thermal converters are made in climatic version UHL 3.1 according to GOST15150-69. By degree of protection against dust and water penetration thermal converters correspond to IP 67 according to GOST 14254-96.
