Platform "2E8-2U" TVGI.469549.007

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

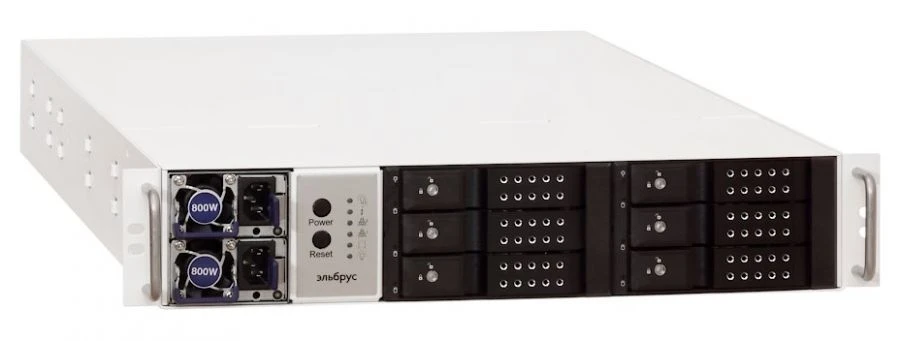

Server platform based on 2 Elbrus-8SV processors allows you to create computing nodes of medium performance level in a 2U case for installation in a standard 19? rack.
Typical applications:
- infrastructure server: files, mail, domain controller;
- Web server or entry-level application server.

Specifications

Chipset 2 central processors Elbrus-8SV; 2 peripheral controllers KPI-2

RAM 8 DDR4-2400 ECC (DIMM 288-pin) slots, up to 256GB (only DDR4 ECC Registered modules are supported)).

Long-term memory 15 SATA 3.0 ports on motherboard; 1 M.2 SATA slot (type M, size 2280-D5) for SSDs; only SATA AHCI drives supported

Video system Integrated 2D graphics as part of the control controller

Audio system integrated HD Audio controller with digital input-output; PC Speaker can be connected

External interfaces 2 Ethernet 1000Base-T network ports with RJ45 connectors; 2 USB 2.0 peripheral ports with A-type connectors; 1 VGA video port with DE-15 connector; 2 USB 2.0 peripheral ports on 1 10-pin comb; 1 RS-232 console port on 10-pin comb.

Internal interfaces 1 SPI bus port on 8-pin comb for ROM update; 1 I2C bus port on 10-pin comb for writing FRUID; 1 JTAG debug port (CPU, KPI-2) on 10-pin comb

Expansion slots 7 PCI Express 2.0 x16 slots (4×8 + 1×4 + 2×1)

Dimensions 19?/2U case, microATX motherboard dimensions 482.6×88.0×740.0 mm, weight 23 kg

Power system Power supply from AC mains 220 V ± 10 %, 50 Hz ± 2 %; 2 power modules with capacity 800 W, consumption up to 800 W

Cooling system 3 80×38 mm fans in the middle of the main compartment 2 40×28 mm fans in each power supply unit

Architecture Elbrus

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
