Platform "1E8-2U" TVGI.469549.006

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

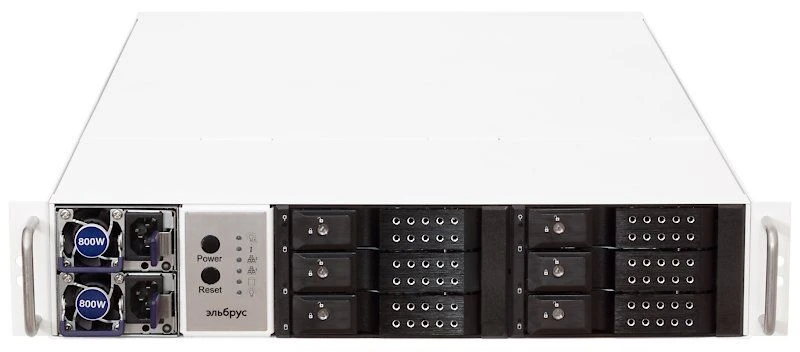

Server platform based on 1 Elbrus-8SV processor allows you to create computing nodes of entry-level performance in a 2U high case for installation in a standard 19? rack.
Typical applications:
- infrastructure server: files, mail, domain controller;
- Web server or entry-level application server.

Technical Specifications

Chipset	1 Elbrus-8SV central processor; 1 KPI-2 peripheral controller
RAM	4 DDR4-2400 ECC (DIMM 288-pin) slots, up to 128GB; only DDR4 ECC Registered modules supported.
Long-term memory	6 hot-swappable 3.5? SAS/SATA bays on front (disc bin has backplate with SATA connectors); 2 2 2.5? slots inside enclosure
Video system	Integrated 2D graphics as part of the control controller
Audio system	missing, PC Speaker can be connected
External interfaces	2 Ethernet 1000Base-T network ports with RJ45 connectors; 2 USB 2.0 peripheral ports with type A connectors; 1 VGA video port with DE-15 connector; 2 USB 2.0 peripheral ports on 1 10-pin comb
Internal interfaces	1 SPI bus port on 8-pin comb for ROM updates; 1 I2C bus port on 10-pin comb for FRUID writes; 1 JTAG debug port (CPU, KPI) on 10-pin comb
Expansion slots	3 x16 PCI Express 2.0 slots (2×8 + 1×2)
Dimensions	19?/2U case, microATX motherboard dimensions 482.6×88.0×740.0 mm, weight 23 kg
Power system	Power supply from AC mains 220 V ± 10 %, 50 Hz ± 2 %; 2 power modules with capacity 800 W, consumption up to 800 W
Cooling system	3 80×38 mm fans in the middle of the main compartment; 2 40×28 mm fans in each power supply unit
Architecture	Elbrus

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
