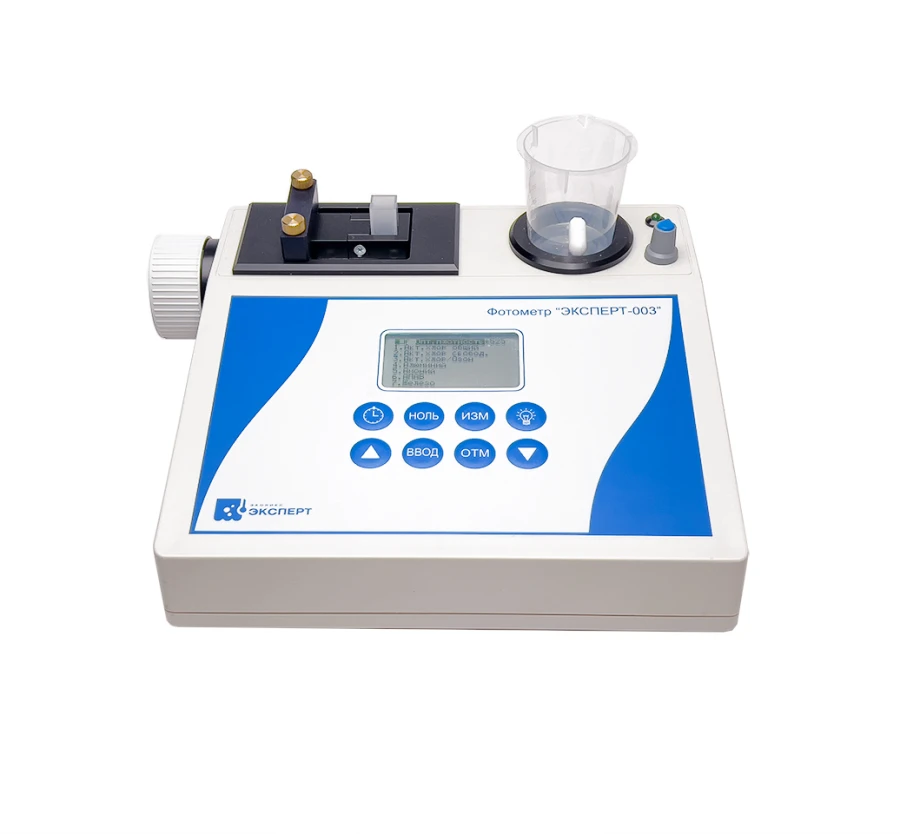

Photometers EXPERT-003

Optical Spectrum Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring the optical density of solutions and optically transparent solids with further recalculation in the result of laboratory test, including for photometric titration.Photometers are produced in modifications EXPERT-003-1, EXPERT-003-2, EXPERT-003-3, which have structural differences.Structurally, the photometer modification EXPERT-003-1 is a modular system consisting of a measuring transducer (MT) and connected to it photometric cells (PC) with interchangeable radiation sources (LEDs).Photometers modifications EXPERT-003-2 and EXPERT-003-3 is a monoblock, in which the MT, PC-1 and magnetic stirrer are combined in a single housing.

Specifications

Weight of photometric cell no more than 1 kg

Weight of the measuring transducer no more than 1 kg

Overall dimensions of photometric cell not more than 200×150×150 mm

Overall dimensions of the measuring transducer no more than 50 mm

Power consumption no more than 50

AC supply voltage 220 at 50 Hz V

Average service life not less than 7 a

Tolerance limit of the random component of the error in optical density measurement 0.005 ?

Limits of permissible value of systematic error in optical density measurement ±0.02 ?

Optical density measurement range 0 - 1.5 ?

Reading range for optical density measurement 0 - 3.0 ?

Operating wavelengths 375; 385, 400; 430; 470; 505; 525; 572; 590; 605; 615; 626; 630, 645, 655; 850; 880; 940 nm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
