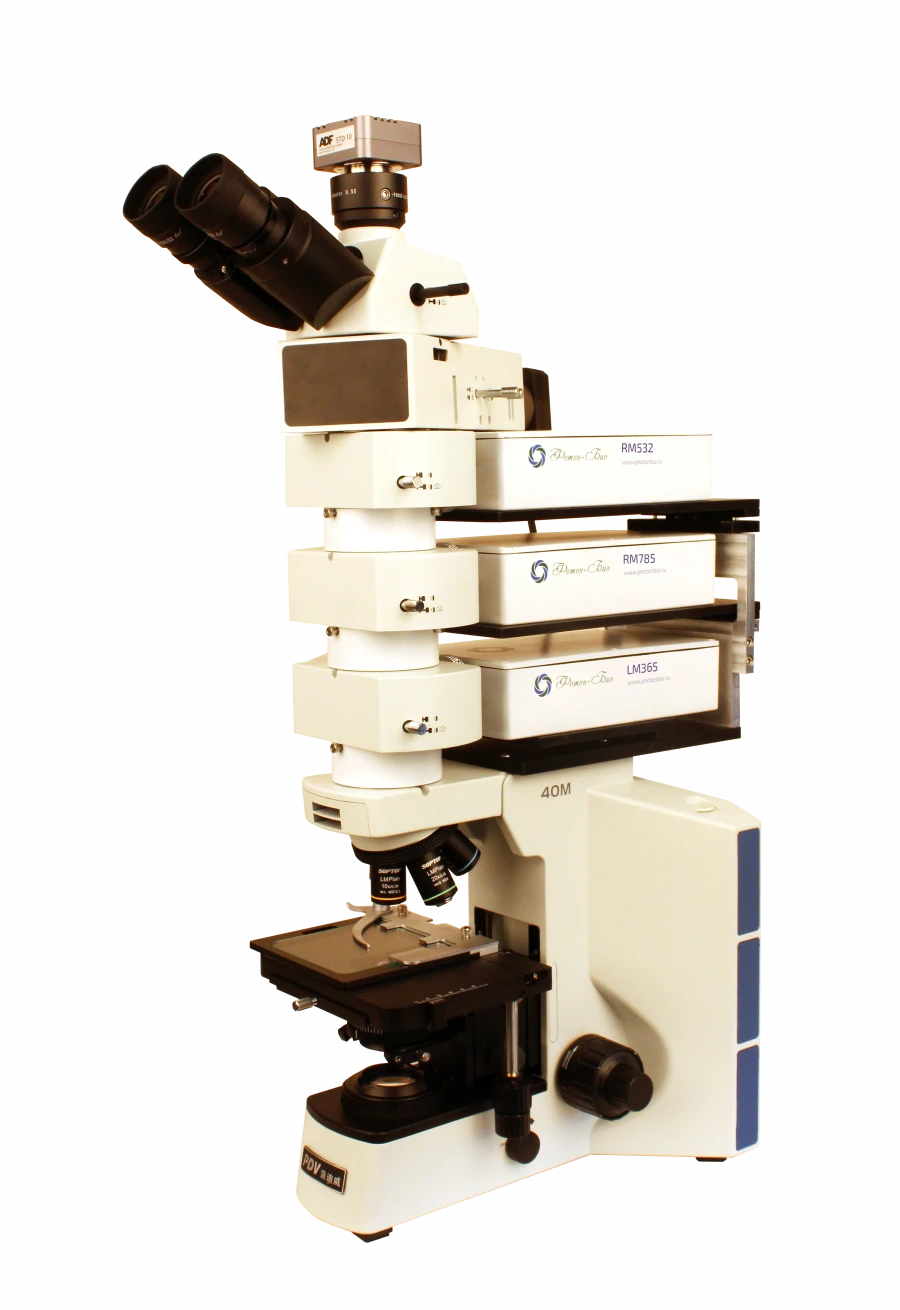

Optical spectral complex "RM532/RM785/LM365"

Optical Spectrum Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The device is designed for obtaining magnified images of small details of the structure of samples, as well as for measuring the spectral characteristics of the sample on the spectra of bulk Raman light scattering and photoluminescence. The functionality of the device is designed for the tasks of spectral identification and analysis of the composition of microstructured objects, chemical substances and biological samples. In addition, the spectrometer can be used in combination with nanostructured metal-dielectric GCR-substrates in order to register the signal of surface-enhanced optical response from trace amounts of investigated substances. The device is supplied in the following set: Optical block of the spectrometer-3, Power adapter-3, USB / mini-USB wire-3, Optical microscope working in transmitted and reflected light, Software. Wide application of the device is possible in many scientific spheres, medicine, educational activities, for solving a number of biotechnological problems, as well as production processes

Technical Specifications

Detector type	CCD ruler
Integration time, ms	48...75
Availability of Optical system with infinity correction	Armoured glass
Reflected light	availability: LED illuminator with field and aperture iris adjustment
Built-in lighting system with Keller tuning capability	Armoured glass
Focusing	Mechanical, with coaxial focus screw
Full stroke range, mm	28
Microscrew pitch, µm/separation	2
Angle of tilt of eyepiece tubes, °	30
Adjustment range of interpupillary distance, mm	48...75 mm
Laser wavelength, nm	365
Maximum output power of laser radiation, mW	5
Spectral resolution	4-6 cm-1/6-8 cm-1/0.6 nm
Spectral range	150-4000 cm-1/200-2300cm-1 /395-980nm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
