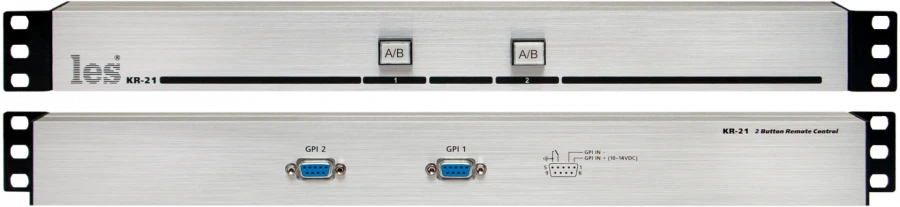

Passive GPI Signal Control Panel KR-21 with 2 Buttons

Available for Import

Passive GPI Signal Control Panel KR-21 for External Device Management

Standalone Communication Devices

Manufacturer:LES-TV LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The panel is designed to control external devices using GPI signals. Located on the front panel, two latching buttons close a pair of pins on the DB-9F output connectors. LED button illumination can be used to indicate the status of the device being controlled. In the KR-21P model, the buttons are equipped with protective covers. The panel has side mounting angles for installation in a telecoms rack. The warranty period is 24 months.

Specifications

Number of GPI inputs

2 pcs

Number of GPI outputs

2 pcs

GPI signal type

contact welding

Maximum permissible voltage on the contact pair

28 V

Maximum current of the contact pair to be closed

0.1 A

Number of GPI connectors

2 pcs

GPI connector type

DB-9F

Number of control buttons

2 pcs

Protective covers for control buttons, for model KR-21

Protective covers on control buttons, for model KR-21P

Armoured glass

LED backlight supply voltage

10...14 V

LED backlight consumption current, typical

0.02 A

Operating temperature range

5...40 °C

Overall dimensions (W - H - D)

483...44 mm

Weight

0.66 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
