2-in-1 Analog Stereo Audio Signal Switch SW-212AS2 for Manual and Automatic Control

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

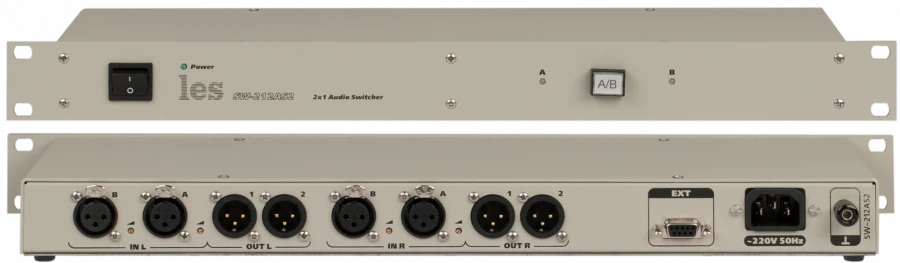

SW-212AS2 is designed for manual and automatic switching of 2 in 1 analogue symmetrical stereo stereo audio signals. On the front panel is located LED indication - which by changing colour shows the presence, absence and level of input signals. Switchboard control is possible in manual and automatic modes. Manual control is performed by means of a button on the front panel or remotely by GPI signals. When working in automatic mode - the switch analyses and diagnoses the input signals, independently switches to the reserve and returns to the main input when the conditions set by you occur. The switch performs silent switching (V-shaped transition without a click), allows you to adjust the sensitivity of inputs in the range from -6 to +7 dB, has dual outputs.

Specifications

Input type

symmetrical

Type of audio signals

Analog

Type of input connectors

3-pin XLR female

Input type

differential, electronic

Input impedance

600 ohm

Output type

floating differential, electronic

Output connectors

3-pin XLR male

Output impedance, not more

60 ohm

Duration of transition

100...250

Bandwidth at -0.1 dB level

20...20000

Transient attenuation between any pair of channels at 10 kHz, not worse

Power supply voltage

230 V

Power consumption

10 W

Operating temperature range

5...40 °C

Overall dimensions (W-W-H)

483...44 mm

Weight

2.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
