Panoramic ARGAMAK-IS field strength meters

Telecommunication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The digital radio receiving device is designed to measure parameters of radio signals and electromagnetic field strength in a wide frequency range with standardised metrological characteristics (type approval certificate RU.C.35.018.A No. 47238/1).
The software supplied with the receiver provides panoramic spectral analysis, recording of radio signals and transmissions, technical analysis, analysis of service parameters of signals of modern digital communication and data transmission systems: GSM, IS-95, cdma2000, EV-DO, TETRA, UMTS, DECT, LTE, 5G, Wi-Fi, DMR, dPMR, NXDN, APCO P25, Bluetooth, Zigbee, digital television DVB-T/T2/H, DTMB.

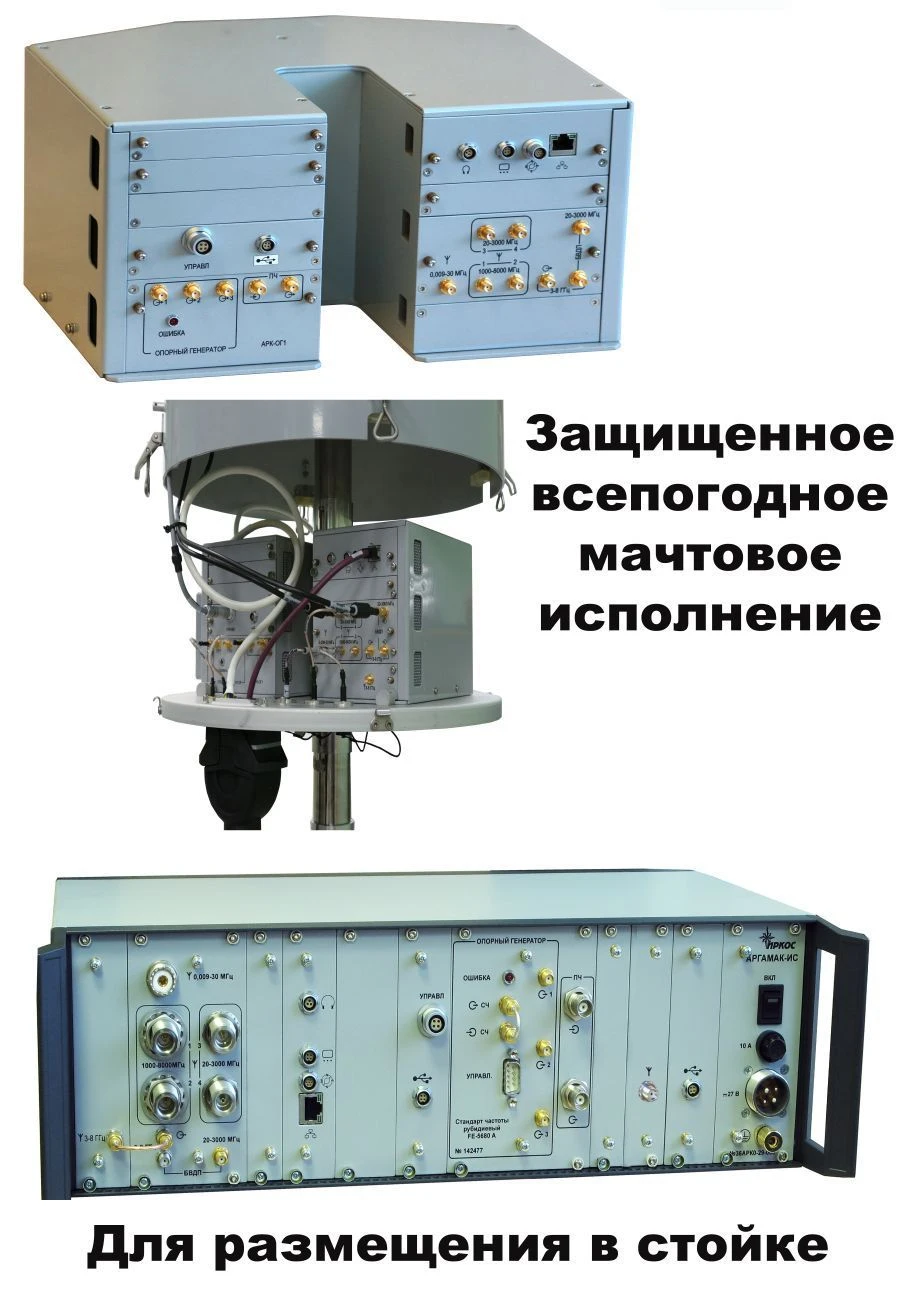

The digital RTU is used as a separate unit or as a part of remotely controlled stationary, mobile and transportable radio control and direction finding measuring stations. There is an all-weather version for outdoor installation, for example, on a mast in the immediate vicinity of the receiving antenna.

Specifications

Sensitivity (at spectrum sampling 3,125 kHz and signal-to-noise ratio 10 dB), microvolt, not more than 1

DC supply voltage 10 - 30 ?

Maximum bandwidth of I/Q time sampling at ± 1.0 dB AFC non-uniformity 22

Minimum duration of a detectable single signal in the simultaneous analysis band (without frequency hopping) 1

Speed of panoramic spectral analysis at frequency tuning in the range of 220 - 3000 MHz at spectrum discretisation of 25 kHz 10 GHz/sec

Relative error of measuring the frequency of unmodulated signal and AM signal (without synchronisation from GNSS), not more than ±1×10-9

Relative error of frequency measurement of unmodulated signal with GNSS synchronisation, not more ±5×10-11

Limits of measurement of sinusoidal signal levels on switched antenna inputs 0-140 dBmqv

Selectivity on side channels, not less than 80

Operating frequency range 0.009...8000
