Multifunctional controller "DECONT-A9E4" from the "Dekont-RTU" complex.

Telecommunication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

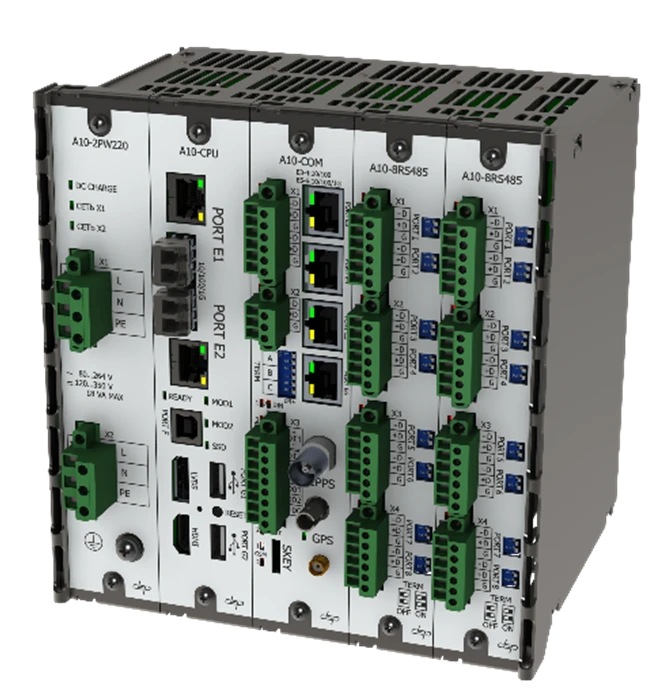

"DECONT-A9E4" is a multifunctional controller from the "DeCONT-RTU" complex. The controller is designed to collect data from input-output modules, measuring devices, digital converters and other intelligent devices, data processing in accordance with predetermined algorithms, archiving and transferring information to a higher level of the automated system using digital data exchange protocols. The device is used as a part of automated process control systems, TM, SSPI, local automation systems, etc. The controller has the necessary computing power, resources and communication ports (RS-485, Ethernet, etc.) to build modern automated systems.

Specifications

FLASH (SSD) expansion, GB Up to 480

Number of RS-485 interfaces 3/11/19

Speed of RS-485 interfaces Up to 307.2 kbps

Number of Ethernet ports: - Universal 10/100/1000Base-TX or 100/1000Base-X (SFP) 2 pc

Number of Ethernet ports: - 100Base-TX (optional) 4 pc

Number of digital input channels 3 pc

Input resistance, kOhm 3,2

Input voltage, V (nom./max.) 24/30

Number of discrete output channels 2 pc

Switchable DC voltage, not more, V (nom./max.) 24/30

Number of power supply channels 2 pc

Rated supply voltage, V =24 / ~230

Consumption current at Upit=24V / power consumption at Upit=230V (total), not more: - "cold start" (ionistor charging) 0,5 A / 15 VA

Current consumption at Upit=24V / power consumption at Upit=230V (total), not more: - continuous operation 0.3 A / 10 WA

Switching current, not more 0.5 A

Degree of protection of the shell IP20

Overall dimensions (HxWxHG), not more, mm 170x180x170

Flash memory capacity 4

RAM memory capacity 1

Central microprocessor ARMv7, 800 MHz, 2 cores

Weight, not more 1.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
