Available for Import

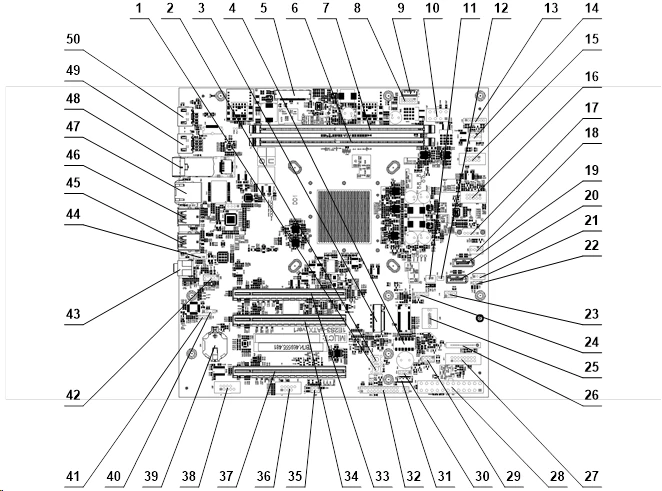

Panel 1E2C3-uATX TVGI.469555.481

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The 1E2C3-uATX panel is intended for use in personal computing equipment, general-purpose servers of the initial performance level.

Specifications

I/O interfaces USB 3.0; USB Type A connector - 3 pcs.; USB 2.0 connector USB Type A - 1 pc.; 10/100/1000 Base-T; RJ45 8P8C connector - 1 pc.; SFP - 1 pc.; HDMI Video Out - 2 pcs.; Audio Headphone Output - 1 pc.; Audio Microphone Input - 1 pc.

Disk subsystem SATA 3.0 7-pin SATA connector - 2 pcs. ; PCIe 3.0 x4 connector M.2 2280 (M key) - 1 pc.

Expansion card slots PCIe 3.0 x4; x16 connector

Graphic controller built in processor 2D and 3D

Peripheral interface controller processor-integrated

Total number of RAM slots, pcs. 2 pc

Total number of activated memory channels, pcs. 2 pc

Type of RAM DDR4-3200 ECC RDIMM/ /UDIMM/LRDIMM/3DS

Total number of cores of all MPUs 2 pc

Microprocessor architecture Elbrus v6

Weight 0.8 kg

Overall dimensions of the product, mm 243,8 × 249,0 × 30,4

Board Form Factor microATX

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
