Available for Import

????.469535.005-01 Motherboard ??151-MV-2

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

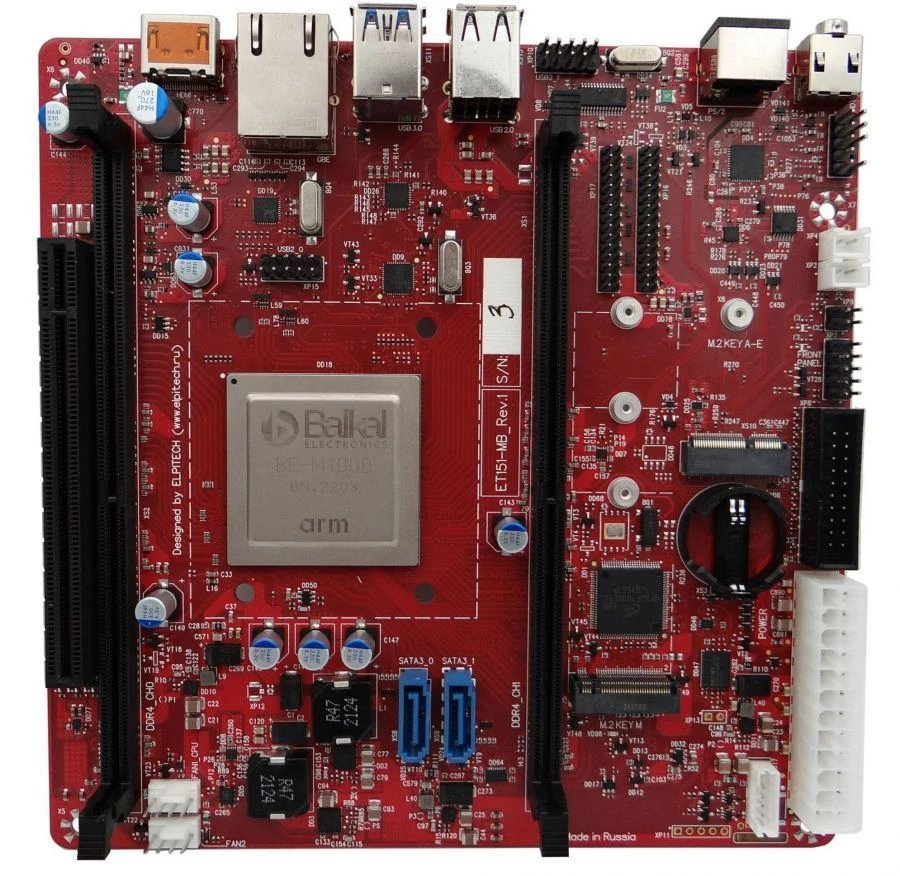

The ET151-MB motherboard of Mini-ITX form factor is designed to work with Baikal (BE-M1000) processors and is installed in monoblocks, small-format personal computers and automated workstations.

Technical Specifications

Chipset	SNK Baikal-M
CPU connector	Processor integrated into motherboard
Type of RAM	DDR4 2133 (including ECC)
Processor architecture	ARM Cortex A57
Maximum RAM capacity	64
Number of memory slots	2 pc
Expansion slots	M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD , M.2 A – E key, PCIe 3.0 x16 slot (x8 lane)
Availability of video connectors	mini-ITX
Number of processor cores	8 pc
Processor	Baikal BE-M1000
Internal connectors	2 × SATA 3.0 6 Gb/s, stereo speaker connectors, 2 × 4-pin fan connectors with PWM control, RTC battery connector, RTC 24-pin power connector.
Expansion slots	M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD, PCIe 3.0 x16 slot (x8 lane)
Maximum RAM capacity	Up to 64 GB (up to 2 DIMM modules)
RAM TYPE	DDR4 2133 (including ECC)
Supported OS	Alt, RED OS, Astra Linux
External inputs/outputs on the rear panel	1 × HDMI out, 4 × USB 2.0, 1 × RJ45 1000BASE-T, Headset jack, PS/2, Display Port
Front panel inputs/outputs	HD Audio connector, Front panel connector (buttons, LEDs), 2 × USB 2.0, 2 × USB 3.0

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
