Paint spraying chambers of GAKS-K-3 type

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

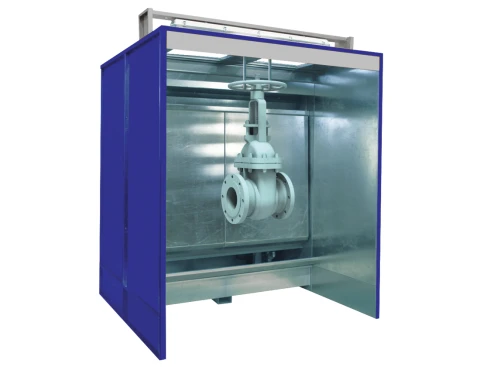

The GAKS-K-3 type painting chambers are designed for painting of pipeline valves after repair with powder or liquid paint coatings. They are used in various spheres of production and industry, where it is necessary to paint parts and structures made of metal. Application of paint and varnish materials is carried out by pneumatic (airless) atomisation with the help of automatic and manual pneumatic paint sprayers. The delivery set of the chambers includes an electric control cabinet with a control panel of explosion-proof version. The chambers are also equipped with explosion-proof lighting, dry and hydrofiltration system. The equipment has a closed water circulation system, which allows the paint booth to function autonomously. To increase the time between cleaning of the chamber, a device for cleaning the water from paint waste - a collector of paint waste - is available on special order.

Specifications

Dimensions of working opening (WxHxH), mm (GAKS-K-3.1) 2000x2400x2140

Dimensions of working opening (WxHxH), mm (GAKS-K-3.2) 3000x2400x2140

Dimensions of working opening (WxHxH), mm (GAKS-K-3.3) 4000x2400x2140

Number of fans, pcs. / pumps, pcs. (GAKS-K-3.1, GAKS-K-3.2) 1 / 1

Number of fans, pcs. / pumps, pcs. (GAKS-K-3.3) 2 / 1

Capacity of fans, cu.m/h / pumps, cu.m/h (GAKS-K-3.1) 7800 / 36

Capacity of fans, cu.m/h / pumps, cu.m/h (GAKS-K-3.2) 8800 / 36

Capacity of fans, cu.m/h / pumps, cu.m/h (GAKS-K-3.3) 15600 / 36

Fan power, kW / pump power, kW (GAKS-K-3.1) 3 / 1,8

Fan power, kW / pump power, kW (GAKS-K-3.2) 4 / 1,8

Fan power, kW / pump power, kW (GAKS-K-3.3) 3 / 1,8

Mains voltage, V / Installed power, kW (GAKS-K-3.1) 380 / 5

Mains voltage, V / Installed power, kW (GAKS-K-3.2) 380 / 6

Mains voltage, V / Installed power, kW (GAKS-K-3.3) 380 / 8

Overall dimensions, mm (GAKS-K-3.1) 2200x3280x3150

Overall dimensions, mm (GAKS-K-3.2 ) 3200x3280x3150

Weight, kg (GAKS-K-3.1 / GAKS-K-3.2 / GAKS-K-3.3) 380 / 460 / 560

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
