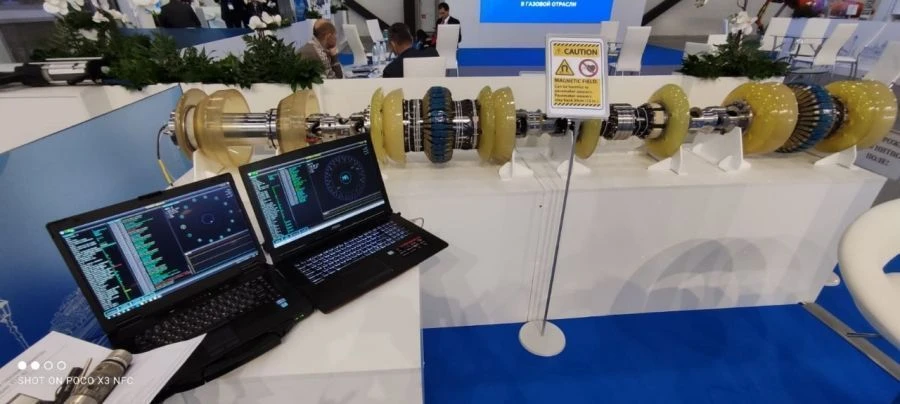

Defectoscope for in-line diagnostics of trunk pipelines MFL 12/10

Defectoscope for in-line diagnostics of main pipelines MFL 12/10 is designed to detect various damages of pipelines with outer diameter from 10 to 12 inches by the method of magnetic flux dispersion. The set of equipment corresponds to TU 28.99.39-002-82209959-2020. Main characteristics of the equipment: - range of speeds of magnetic inspection devices movement along the pipeline - from 0.5 to 4.0 m/s; - minimum internal diameter of pipeline constriction, passable for magnetic inspection devices - 0.8 Dn; - minimum radius of pipeline rotation - 1.5 Dn x 90 deg; - number of channels of magnetic measuring section - 152; - number of channels of the introscope section - 152; - distance between magnetic sensors along the circumference - not more than 5.0 - 8.0 mm; - step of magnetic data registration along the length of the controlled pipeline - not more than 2.4 mm; - number of odometers for measuring the travelled distance - 2 pcs
