Outdoor telecommunication cabinet ???-?-42U-1900?2450?800-??

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

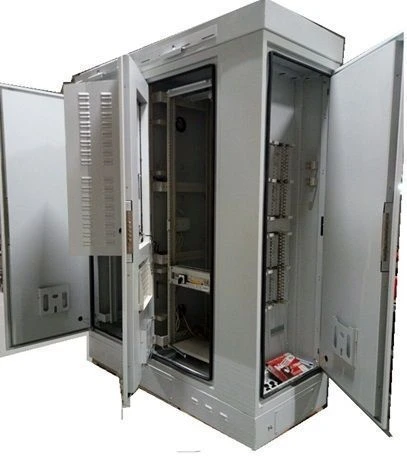

???-?-42U-1900?2450?800-??. Outdoor telecoms cabinet for telecoms equipment installation on the foundation. Mounting profiles 19" height 42U. Structural execution: 2 functional compartments and cross compartment with capacity of 1800 steams. The cabinet is intended for installation of the following equipment: VRU-19-3U = 1 piece, conditioner 2000W=1 piece, thermostat NC = 1 piece, heater 220 V, 1000 W=1 piece, sensors = 1 piece. Overall dimensions ?????? mm = 1900?2450?800. Plinth height 200 mm. Roof height 150 mm. IP 55.
External structural elements of the cabinet are made of high-strength steel 1,5 mm thick and have a protective anti-corrosion epoxy powder coating passed preliminary phosphatisation of surfaces.

Technical Specifications

Availability of fasteners to the support (pole)	no
Type of accommodation	outdoor
Height, U	42
Operating temperature range	-40...60 °C
Connector	no
Cable type	no
Device type	Outdoor telecommunication cabinet
Height/story (unit)	42
Form factor (rack-mounted, freestanding)	Not in the classifier
Type of optical ports	no
Depth	800 mm
Power supply voltage	220...380 V
Protection class	no
Equipment	no
RAM	no
Number of processor cores	no
Slots	no
Number of processors	no
Weight	250 kg
Length	800 mm
Height	2450 mm
Width	1900 mm
Type of accommodation	outdoor for floor mounting
Type of construction	unassembled
Usable depth	800 mm
First characteristic digit of the degree of protection designation	5
Second characteristic digit of the degree of protection designation	5
Type of floor support	Armoured glass
Availability of fasteners to the support (pole)	no
Type of coloring	Powder
RAL color	7035
Material	Cold-rolled steel
Material thickness	1.5 mm
Upper limit of operating temperature	60 °C
Insulation thickness	10 mm
19" profile for mounting equipment	Armoured glass
Useful height (for two compartments total), U	84
Heater	Armoured glass
Resistance to mechanical external influencing factors (EIF)	according to gost 17516.1-90 (IEC 721-3-3-87) - m42
Resistance to mechanical (BBF) effects	according to iec 62262 class ik08
Cooling capacity	2000 W
Number of compartments	3
Cross capacity, pairs	1800
