Outdoor telecommunication cabinet ???-?-615x700x505-??-08

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

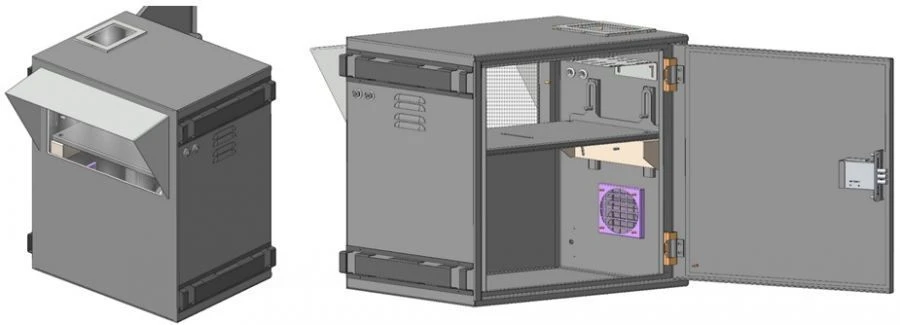

???-?-615x700x505-??-08. Telecommunication outdoor cabinet designed for placement of video surveillance equipment, photo and video fixation of traffic violations. Mounting on a pole (support). Version 08.The product is an outdoor vandal-proof telecommunication cabinet designed to accommodate video surveillance equipment, photo and video recording of traffic violations, rechargeable batteries to ensure autonomous operation of the devices, as well as other equipment or technical means of security, control and management systems. The product is located on the street. The design provides for installation on a foundation base or mounting on walls or poles.
The body of the product is made of 2.0 mm thick steel in the form of all-welded construction and painted with light grey powder paint (RAL 7035). The design of the cabinet provides for mounting both on the wall and on the pole.

Technical Specifications

Availability of a shelf for mounting equipment	Armoured glass
Availability of radio-penetrating glass	Armoured glass
Availability of fasteners to the support (pole)	Armoured glass
Type of accommodation	outdoor, hinged, outdoor
Operating temperature range	-40...50 °C
Connector	no
Cable type	no
Device type	Outdoor telecommunication cabinet
Form factor (rack-mounted, freestanding)	freestanding
Type of optical ports	no
Depth	505 mm
Protection class	IP54
Equipment	Mounting to support (pole)
RAM	no
Number of processor cores	no
Slots	no
Number of processors	no
Weight	60 kg
Length	505 mm
Height	700 mm
Width	615 mm
Type of accommodation	outdoor for surface mounting
Type of construction	unassembled
Usable depth	505 mm
First characteristic digit of the degree of protection designation	5
Second characteristic digit of the degree of protection designation	4
Type of floor support	no
Availability of fasteners to the support (pole)	Armoured glass
Type of coloring	Powder
RAL color	7035
Material	Cold-rolled steel
Material thickness	1.5 mm
Upper limit of operating temperature	SBVVBG °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
