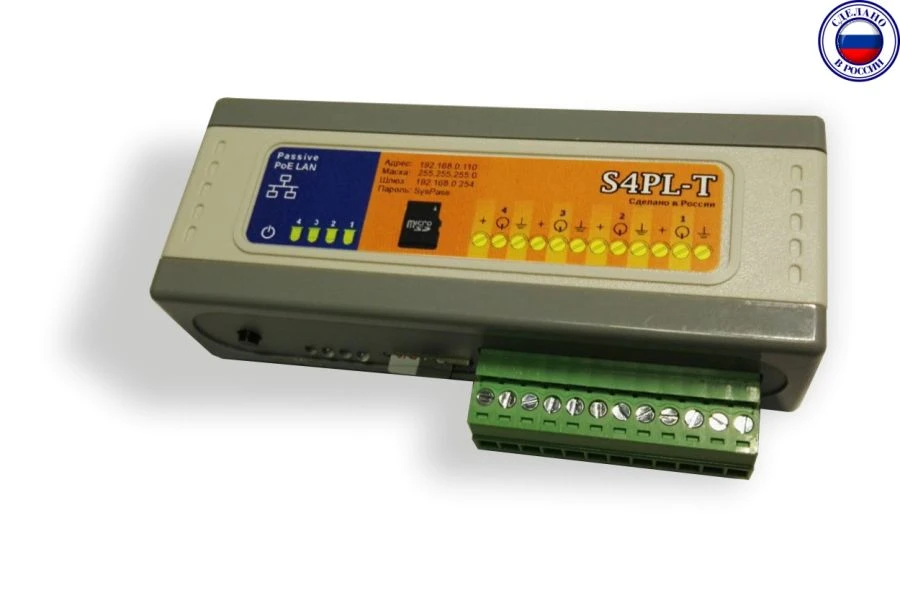

OSA S4PL-T Autonomous Audio Recorder for Transport Safety

Audio Recording Devices

Manufacturer: UNSO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Autonomous audio recorder OSA S4PL-T (for transport security) is used for autonomous, without operator's participation audio recording from microphones, intercoms and telephone lines. Recording is made without compression in PCM 16 Bit format on a removable micro-SD 10 class memory card up to 512 GB with subsequent archiving on an FTP server.Provides protection of audio data from interception and copying by encrypting records with AES key up to 56 Bit. Allows online audio broadcasting via RTSP stream on a media player, such as VLC.Audio recorder control is carried out via local network, to which it is connected via RJ45 network connector.Microphones, intercoms and line outputs from radios are connected to the terminal block.

Audio recorder provides power to 2 and 3-wire microphones, with a current consumption of no more than 15 mA.The ability to select one of the following recording modes: constant, by acoustic start, by schedule, from the control board PU-4.

Specifications

Acoustic range

10 m

Number of channels

4 pcs

Type of sound source

Microphone, telephone, radio station, intercoms Client-Cashier, signal generators.

Connecting an audio source

Screw block

Network interface

Ethernet 10/100Mbps, RJ-45 connector

Device power supply

Active PoE IEEE 802.3af and Passive RoE, 48 - 60 V

Power consumption

1.5 W

Type of enclosure

Plastic

Execution

Tabletop

Operating temperature range

0...70 °C

Place of storage of records

Memory card, FTP server

Memory card type

SD HC and XC standards, Class 10

Supported memory card capacity

16...512

Hot swap memory card

Allowed without loss of information

Upload to FTP

Scheduled, at the end of file recording

Connecting to the device

Via Ethernet or Internet (via white IP address)

Protocol used

RTSP, TCP and UDP

Accessing the web interface of the device

HTTP Protocol

Differentiation of access rights

User - limited rights.

Name of the software package to be used

R-Monitor (under Windows 7, 8, 10)

Interface

Russian-speaking

Recording Modes

Constant, by schedule, by acoustic start, by signal from control board PU-4

Remote monitoring

Possible online via network and Internet

Recording AGC adjustment range/step

0...45

Recording AGC time constant

0.1...6

An algorithm for compressing audio information:

PCM uncompressed, 16 Bit/sec.

Dynamic range of the recording channel

Non-uniformity of the amplitude-frequency response

1.6...1.8

Nonlinear distortion factor

0.8...0.95 %

Signal-to-noise ratio

Sampling frequency

Operating frequency range

100...7200

Audio data protection

Stream encryption, AES key up to 56 bits.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
