Orthopaedic devices for ankle and knee joints
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

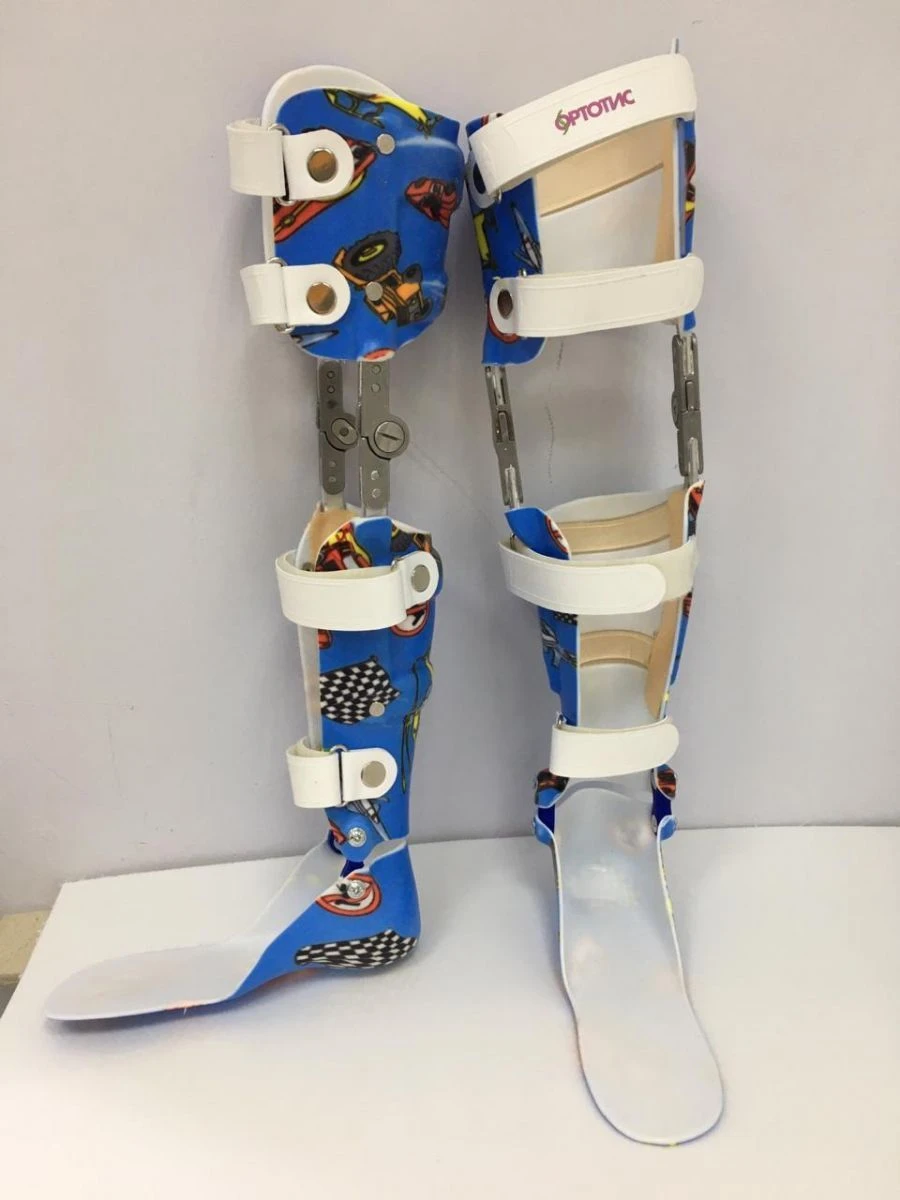

Ankle and knee joint fixing, corrective, from thermoplastic. Splints with knee and ankle joints (lockable, lockless, depending on the individual characteristics of the patient). Production of individual, according to casts, permanent.
Specifications
Axis displacement in unicondylar knee assembly without locking
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 22 mm in nodes with load levels P3, P4, P5, P6.
Axis displacement in a locking unicondylar knee assembly
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 20 mm in nodes with load levels P3, P4, P5, P6.
Angular movement of the splint foot in the sagittal plane from the zero position in the knee assembly
95° to 110°
Axis dislocation at the ankle joint
From 11 to 16 mm in nodes with load levels P1, P2 and not more than 25 mm in nodes with load levels P3, P4, P5, P6.
Angular movement of the splint foot in the sagittal plane from the zero position at the ankle joint
Not more than 20° to the rear bending side and not more than 30° to the plantar bending side.
Level of load on apparatus units
P1 - 25 kg, P2 - 45 kg, P3 - 60 kg, P4 - 80 kg, P5 - 100 kg, P6 - 125 kg
Completeness
Conforms to process documentation and order conditions
Material
Basic materials - sheets of polyolefin types PE, Foam materials (thermo-formed) are used as a softening layer; Unified assemblies made of metals.
