Orthopaedic devices for wrist, elbow and shoulder joints
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

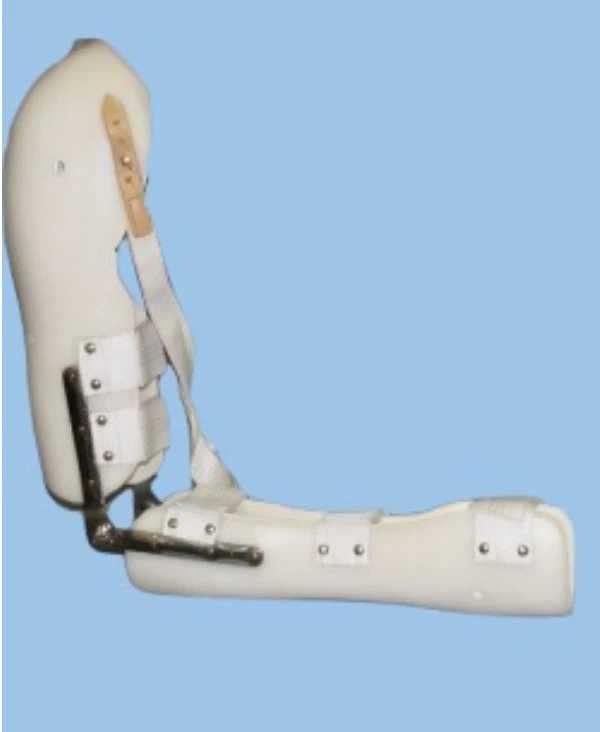

Apparatus for wrist, elbow and shoulder joints, fixing, correcting, unloading. The device is made in the form of a sleeve covering the area of the wrist, elbow and shoulder joint made of foam elastic and softening materials, high-temperature thermoplastic, with nodes (modules) and semi-finished products. The device is made with fastening elements ensuring reliable fixation of the product on the patient. The apparatus is made according to an individual mould of the patient.
Specifications
Providing the wrist assembly with an angle of rotation in the horizontal and vertical planes passing through the longitudinal ax
At least ±30°
Providing the wrist assembly with an angle of rotation around the longitudinal axis of the forearm support assembly
At least ±45° from the average physiological hand position
Angle of rotation in the sagittal plane
Not less than 80° and in frontal plane - not less than 50°
Providing a shoulder rotation assembly for rotation of the elbow assembly relative to the longitudinal axis of the shoulder supp
at least ±45° from the average physiological position of the shoulder
Angle between the axes of the supporting nodes of the forearm and upper arm when the ulnar node is flexed
165° to 170°, and when bent - not more than 50°
Elbow traction force required for full bending of the prosthesis without load in the active elbow joint, N, max.
30 for size 1, 50 for size 2, 100 for size 3,4,5
Level of load on apparatus units
P1 - 25 kg, P2 - 45 kg, P3 - 60 kg, P4 - 80 kg, P5 - 100 kg, P6 - 125 kg
Completeness
Conforms to process documentation and order conditions
Material
Basic materials - sheets of polyolefin types PE, Foam materials (thermo-formed) are used as a softening layer; Unified assemblies made of metals.
