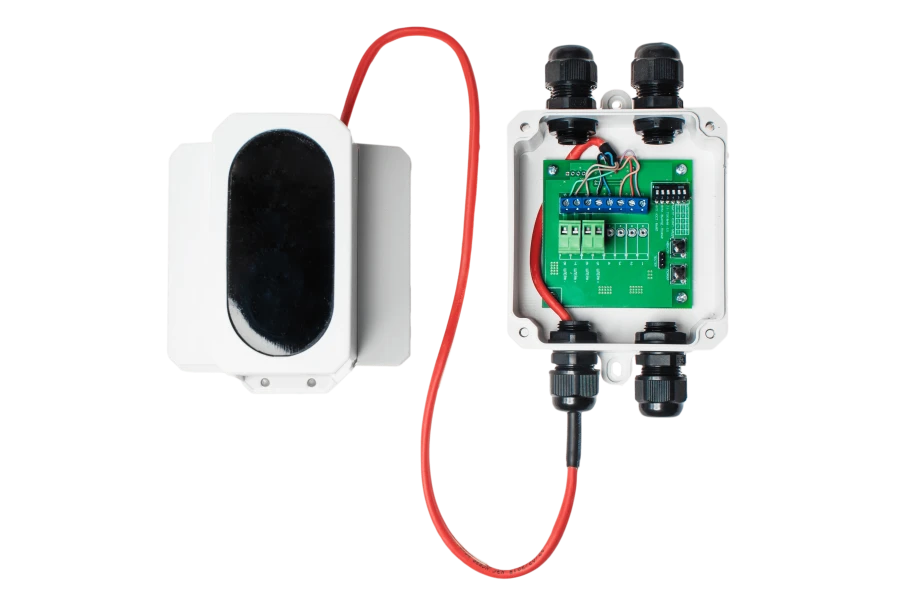

Optical-Electronic Linear Smoke Detector IP212-75Ex-Yastreb for Explosion-Proof Applications

Fire Alarm Detectors

Manufacturer:IVS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Fire smoke detector linear explosion-proof. Distinctive features of this modification: single-position version; operating distance from 8 to 60, to 80, to 100 metres; the detector has the explosion protection marking "0Ex ia II CT6 Ga" and intrinsic safety parameters: "Li: 1 µGn, Ci: 1000 pF, Ui: 30 B, Ii: 25 mA, Pi: 0.75 W"; reflector IPDL-Ex has the explosion protection marking "II Ga T6 X". ??212-75??

is a single-position linear explosion-protected fire detector consisting of a transceiver, hermetic enclosure and reflector reflector. In the transceiver, the optical channels are separated and isolated in a two-chamber optical system. As a reflector-reflector in ??212-75??

a highly effective cataphone (light-reflector) is used, which is able to fulfil its functions even if its surface is deflected relative to the optical beam by 10 - 15 degrees. The output pads and the switch for setting the tactics of operation are located in the hermetic box.

Specifications

Degree of protection of the shell according to GOST 14254, IP

Weight of the reduced reflector-reflector, not more than

0.07 kg

Weight of a standard reflector-reflector, not more than

0.45 kg

Weight of the transceiver, not more than

0.42 kg

Inertia of "Fault" notification fixation in the "Fault - Reduction" mode

40...60

Inertia of "Fault" notification fixation in the "Fault - excess" mode

40...60

Inertia of "Fault" notification fixation in the "Fault - Beam" mode

6.5...7.5

Inertia of "Fault" notification fixation in the "Fault - tolerance" mode

3...5

Inertia of "Fault" notification fixation in the "Fault - memory" mode

3...5

Typical inertia of detector operation (for "Attention" and "Fire" signals)

Maximum inertia of detector actuation (by signals "Attention" and "Fire")

Minimum required duration of power failure to ensure resetting of recorded notifications

Minimum permissible power interruption interval frequency

Maximum possible duration of interruptions or polarity reversals of the supply voltage that do not affect normal operation

100

Current surge value at formation of the output signal "Attention"

0.00675...0.00825 A

Current consumed by the detector in the "Fault" signaling mode, not more than

0.001 A

Current consumed by the detector in the "Fire" signal generation mode, not more than

0.025 A

Current consumed by the detector in the "Attention" signaling mode, max.

0.01 A

Current consumed by the detector in the "Normal" mode,not more than

0.001 A

Detector supply voltage

10...30 V

Maximum possible room area protected by one detector

900

Maximum possible width of the space to be protected by one detector

9 m

Range of possible distances between the transceiver and the reflector-reflector

8...100 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
