Available for Import
Operative current control apparatuses
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
- organisation of working and backup power supply of protection circuits, automatics and telemechanics, remote control equipment, emergency and warning signalling, switching on the drive of high-voltage switch and other responsible DC consumers;
- charging, recharging and condition monitoring of the battery operated as part of the product.

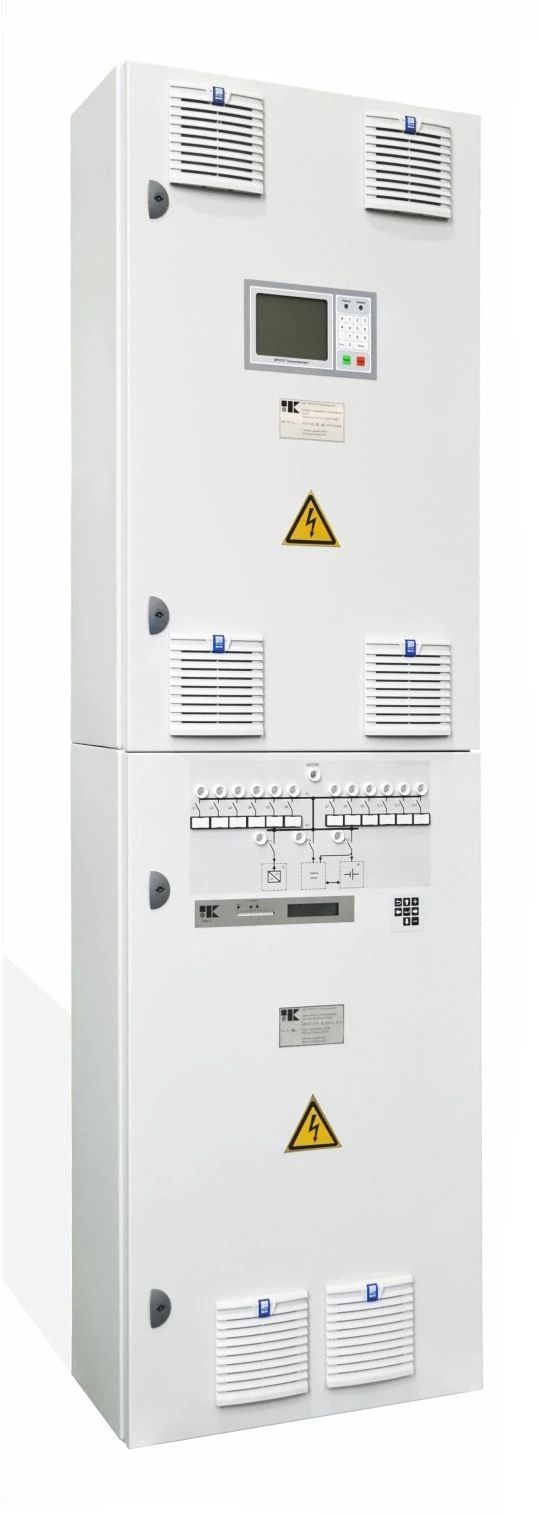

The product includes:
- input and distribution cabinet (ICD);
- rectifier-charging unit (RCU) cabinet AUOT-M;
- battery cabinet(s) (SHAB);
- accumulator battery.
The product equipment is located in prefabricated metal enclosures of single-sided service.
The input and distribution cabinet (I&D cabinet) is used as a support to the rectifier-charger cabinet (RC), forming a combined compact system.
The ABs, when supplied together, are housed in a separate cabinet.
Technical Specifications
| Rated output current (in case of simultaneous operation of two converter units) | 25(40), 50(80) ? |
|---|---|
| Duplication of power supply system by automatic redundancy of main and backup converter units | Got it |
| Local monitoring of product operation parameters | Got it |
| Battery circuit current monitoring | Got it |
| Cabinet heating | Optional |
| Degree of protection | Optional up to IP 54 |
| Input power factor corrector | no |
| Isolation transformer of the standby input and rectifier | no |
| Isolation transformer at the rectifier input | no; galvanic isolation of input and output circuits is provided in the high-frequency conversion link |
| RFI interference level filter | Got it |
| Protection against reverse current | no |
| Group spare parts | Optional |
| Isolation monitoring of load output circuits | general insulation resistance monitoring, control range from 5 to 150 kOhm |
| Thermal compensation of battery recharge voltage | Got it |
| Earthquake-proof version according to MSK-64 scale | 6 points; optional up to 9 points (optional) |
| Remote monitoring | on industrial networks based on RS-485 standard, Modbus RTU protocol |
| Parallel work | Got it |
| Output voltage | 230 V |
| AC input voltage | 380 V |
| Degree of protection (IP) | IP 21 |
| Connection type | 3L+PE |
| Adjustable output voltage setpoint | 85...140 V |
| Steady-state deviation of the output voltage from the set value in the range of 0.9 to 1.15 nominal voltage | 0.5 % |
| Number of feeders | two (main, reserve) |
| Mains frequency | SBVVBG |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
