Power converter ??-3-02?-?2

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

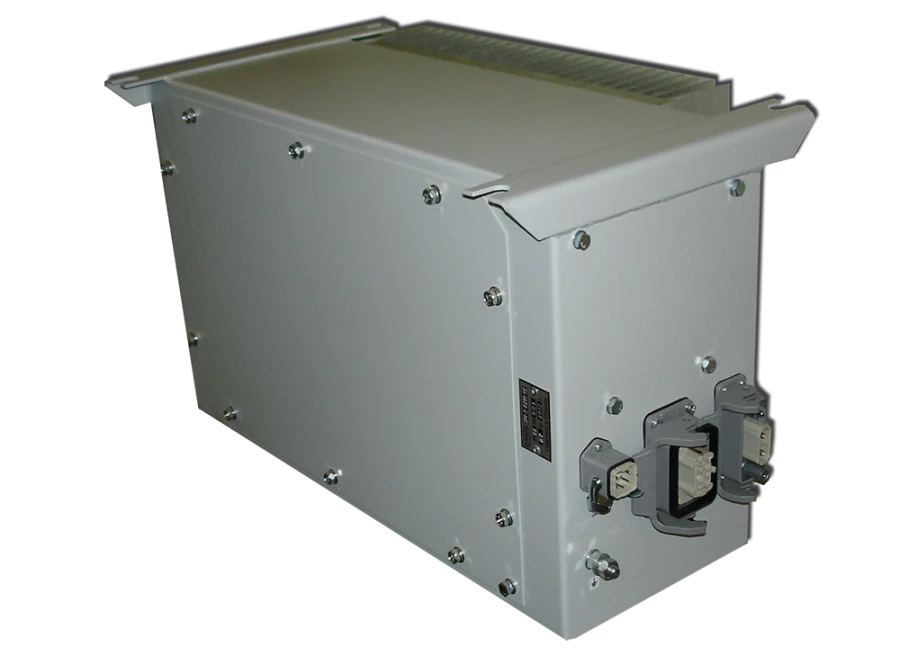

PCh-3-02M-U2 is designed to ensure the operation of the driver's cabin air conditioning system for metro cars of 81.717.2K and 81-714.2K models as part of a six-car train, with the possibility of short-term (up to 40 minutes) exit from tunnels to open sections of lines. IF-3-02M-U2 is placed in a metal cabinet, which is installed in the undercarriage space on the head cars. Power supply of the IF-3-02M-U2 is carried out from the on-board DC network of the wagon, working in buffer with a battery, with a nominal voltage of 80V. There are 96 units in operation.

Technical Specifications

Overall dimensions (DxWxH)	526x279x326 mm
Weight	27 kg
Number of channels	2
Input supply voltage deviation	50...82 V
Power consumption for own needs	0.1 kW
Rated linear output voltage (Channel 1 of three-phase AC consumer supply)	380 V
Rated output frequency (Channel 1 of three-phase AC consumer power supply)	SBVVBG
Number of phases (Channel 1 supply of three-phase AC consumers)	3 pc
Frequency control range at start-up (Channel 1 of three-phase AC consumer power supply)	0...50
Voltage regulation (Channel 1 of three-phase AC consumer supply)	Yes, at start-up
Frequency control (U/f - const)	Yes, at start-up
Output phase current (Channel 1 of three-phase AC consumer power supply)	2.5 A
Power at the output (Channel 1 of three-phase alternating current consumers supply)	1.5 kW
Rated output supply voltage (Channel 2 DC consumer supply)	24 V
Amplitude of output voltage ripple (Channel 2 DC consumer supply)	0.5 V
Output power (Channel 2 DC consumer power supply)	80 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
