NM Mezzo Mini module YuFKV.469535.007

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

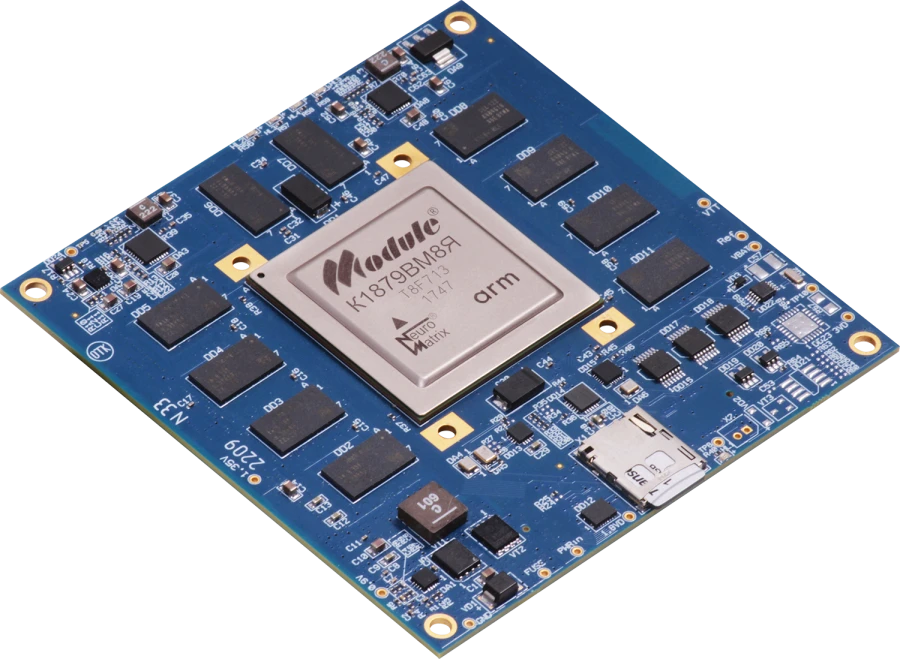

Module NM Mezzo Mini YuFKV.469535.007 is a special calculator connected via PCIe bus to the customer's carrier board. It can also be used as a processor module under Linux OS. It is effective for implementing neural networks, solving problems of digital signal and image processing. Application areas: artificial neural networks and artificial intelligence, integrated modular on-board equipment and complexes, digital signal and image processing systems, machine vision systems, robotics, telecommunication and communication systems, radio engineering systems, automation of production processes.

Technical Specifications

Flash permanent memory device (ROM)	4 Mbps.
DDR3L Random Access Memory (RAM)	5
Indication LED HL1 - HL5	5 pc
100 MHz HCSL level clock source	1 pc
??? ?1879??8? ????.431282.026??	1 pc
GPIO	7 pins
PCIe x 4 Rev.2.0 interface	1 pc
100 Mbps Ethernet interface with EDCL support	1 pc
UART interface	1 pc
JTAG interface	1 pc
microSD card	1 pc
Status indication signal output (via GPIO)	1 pc
Power consumption, max.	25 W
Module power supply voltage range	4.75...12.5 V
Rated supply voltage of the Module	B1/B8 2100/900 MHz V
Average life value, not less	8760 ?.
Mean time between failures, not less than	35000 ?.
Shelf life of the Module, not less than	3 a
Resistance to external influences	The module corresponds to execution group 3 on resistance to climatic factors according to GOST 21552-84, i.e. it functions at ambient air temperature from 5 oÑ to plus 40 oÑ; relative humidity from 40 % to 95 % at 30 oÑ, non-condensing.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
