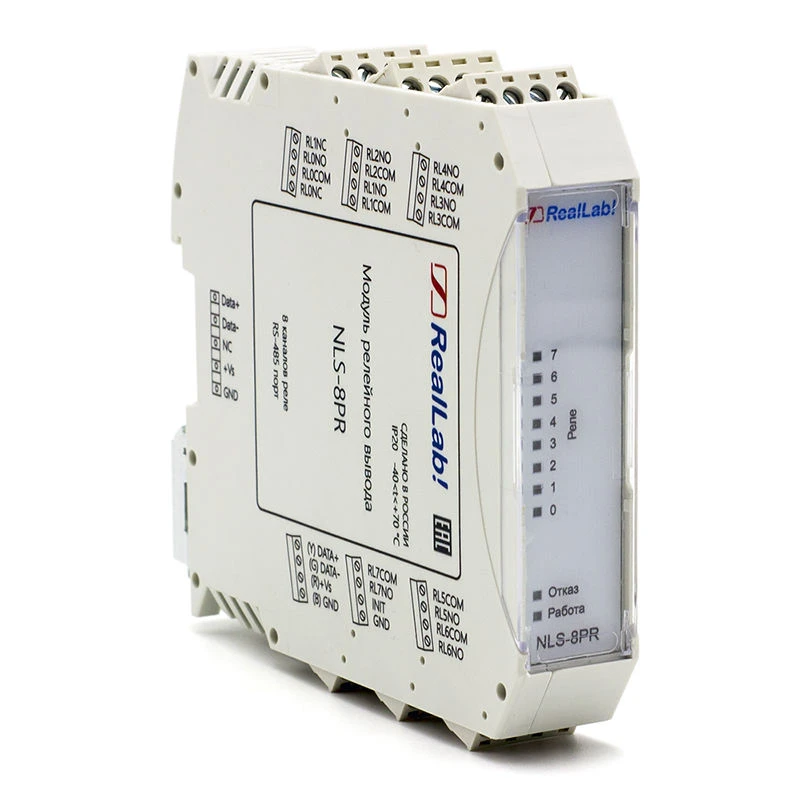

NLS-8PR Power relay output module

Purpose: designed to output signals from relaysConnection: 8 relays 5 A =30 V or 5 A ~250 V per one relay contact.6 relays with normally open contacts and 2 - with switching contactsGalvanic isolation: group 3 kV (relays)Protection: over voltage supply, incorrect polarity connection of the power supply, protection via RS-485 interface, etc.Temperature: operating temperature range from -40 to +70 SIInterface connection: RS-485 interfaceProtocols: default protocol - DCON (ADAM-compatible) and MODBUS RTU (enabled by software)Power supply: from 10 to 30 VP Power consumption: not more than 0.3 / 1.7 W (with off / on relays)Design: slot design, bus connector for RS-485 interface and power supplyMounting: mounting on DIN-railCode OKPD2: 26.51.43.117Dimensions (H x W x D): 109x22,5x113 mmWarranty: 18 months
