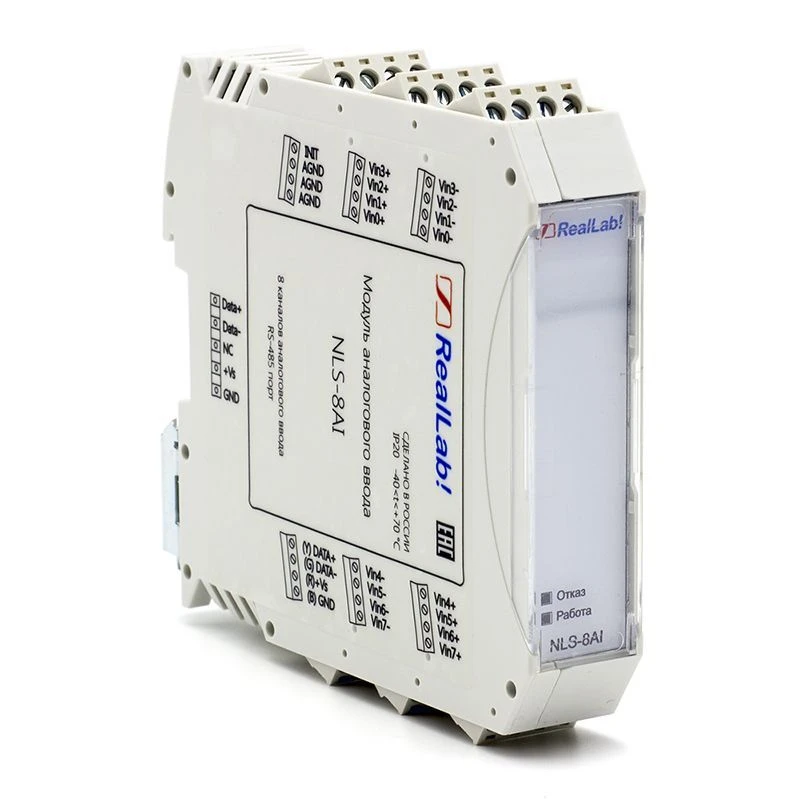

NLS-8AI-I Input module of analogue current signals

Purpose:to measure only 20 mA currentConnection:has 16 single channels with built-in 124 Ohm shuntsDigit capacity:16 digitsMeasurement ranges:independent setting of measurement ranges for each channel (only for ASCII mode)Galvanic isolation:galvanic isolation voltage 2500V protection types:11 types of protection: from overvoltage and current overload on input, output, interface, from overheating, static electricity, etc.Bandwidth:13.1 Hz Measurement error:basic measurement error is not worse than 0.1%Interference coefficient:the coefficient of attenuation of general type interference with a frequency of 50 Hz - not less than 100 dBTemperature:operating temperature range from -40 to +70 SIInterface connection:RS-485 interfaceProtocols:default protocol - DCON (ADAM-compatible) and MODBUS RTU (enabled by software)Mounting:din-rail mountingDimensions (H x W x D):109x22.5x113 mmWarranty:18 months
