Available for Import

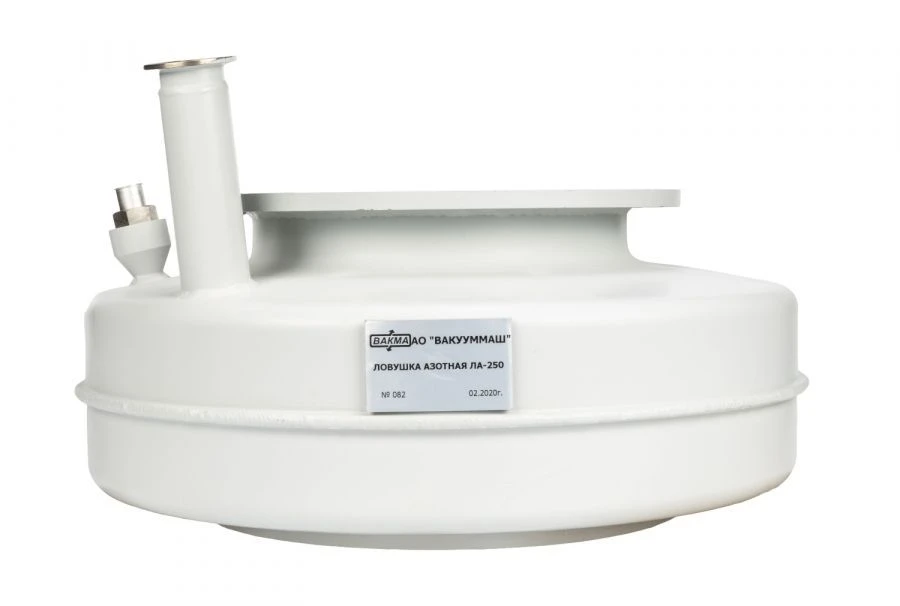

Nitrogen vacuum trap LA-250

Vacuum Pump Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Nitrogen pouring trap LA-250 is installed on the inlet flange of the diffusion pump and is designed to reduce the flow of working liquid vapours into the pumped volume by condensing them on the liquid nitrogen cooled elements of the freezing device.

Specifications

Conductivity at a pressure of 1.3x10 -2 Pa, l/s , not less than

2300 l/s

Liquid nitrogen flow rate at pressure 6.6x10 -3 Pa, l/h, not more than

1 l/h

Volume of the freezing device for liquid nitrogen, l, not less than

7.5 l

Oil vapor flight at pressure 1.3x10 -2 Pa, g/h, not more than

5,0x10 -5 g/h

Weight without plugs and parts of their fastening, kg, not more

28 kg

Weight including plugs and parts of their fastening, kg, not more

41 kg

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
