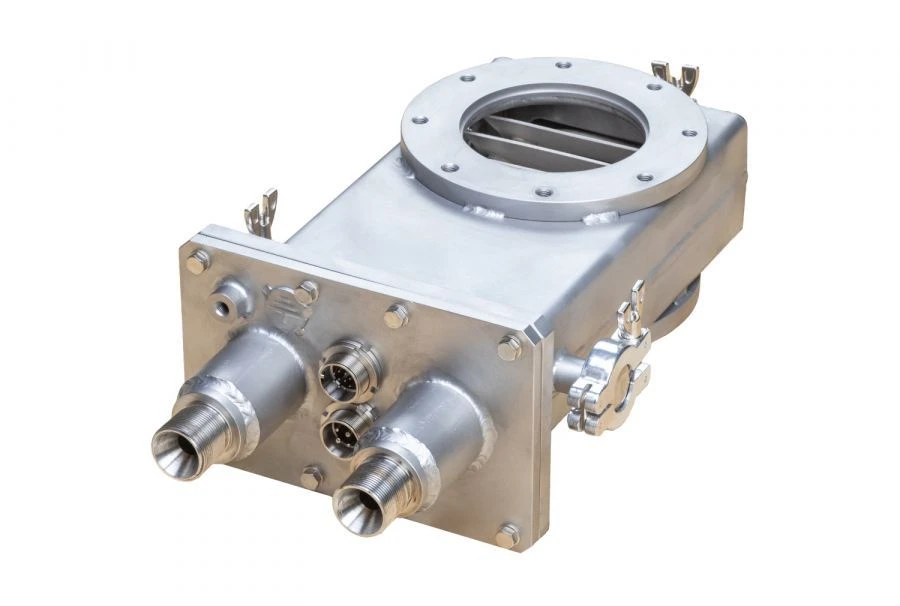

Nitrogen flow vacuum trap LAP-100P

Vacuum Pump Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Nitrogen flow vacuum trap LAP-100P is designed to protect vacuum pumps from contamination in the form of vapours of resins, oils and adhesives by freezing them on cooled surfaces with the possibility of their removal and to prevent the penetration of vapours of working fluids of vacuum pumps into the pumped vessel. Nitrogen flow vacuum trap LAP-100P is not intended for operation at fire-explosive production facilities. The LAP-100P trap is designed for operation in a room with air purity corresponding to ISO class 8, operating condition, 1 micron according to GOST R ISO 14644-1-2017.

Technical Specifications

Frequency, Hz	SBVVBG
Nominal bore DN, mm	100 mm
Tightness rate, m3?Pa/s, not more than	1,0x10 -8 m3-Pa/s
Coolant flow rate at pressure inside the trap body not more than 1.3?10-2 Pa, m3/h, not more*	8?10 -4
Operating temperature of the screen surface at the pressure inside the trap body not more than 1.3-10-2 Pa, °?, not more than	- 130 0?
Overall dimensions (in/out/n), mm, not more	140/467/232,5 mm
Weight, kg, not more	15 kg
Heater power consumption, W, not more	300 W
Supply voltage, V	B1/B8 2100/900 MHz V
Regeneration time, h, not more	8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
