NCU Distribution and Control Cabinet "NCU-BS-VD Available for Import

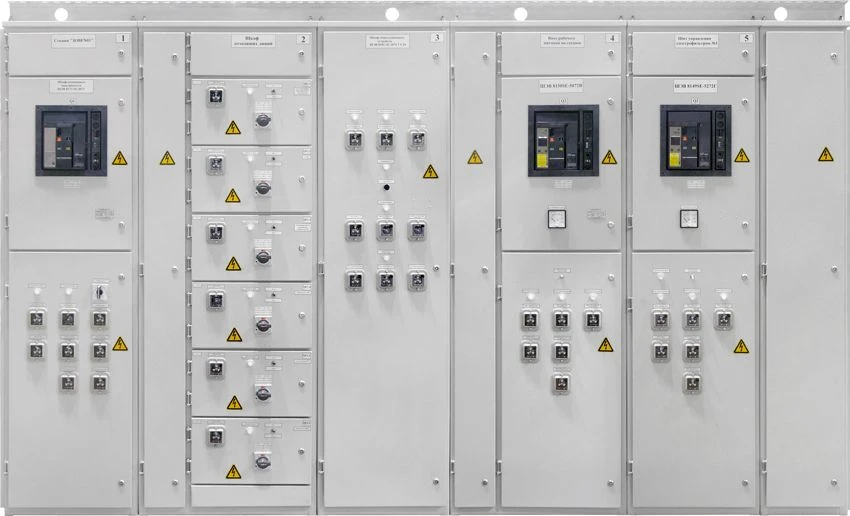

NCU Distribution and Control Cabinet "NCU-BS-VD" for Power Stations and Industrial Applications

Low-Voltage Electrical Panels
Manufacturer: EKRA LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

designed for installation in switchgear of power plants (including nuclear power plants), as well as in electrical installations of power systems.
as well as in electrical installations of power systems of various industries.

Specifications

Designation
НКУ-BS-ВД
Rated insulation voltage
1000 V
Rated current of main busbars
4000 A
Rated current of distribution busbars
2000 A
Type of service
Unilateral
Maximum number of modules per cabinet
68 pcs
Height
2200 mm
Width
1200 mm
Depth
1200 mm
Degree of protection
IP20
Grounding system
TN-C, TN-S, TN-C-S

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
