Power Distribution Unit with 7 Outputs, LPCU-71SE-IEC

Available for Import

Power Distribution Unit with 7 Outputs for Reliable Power Management (LPCU-71SE-IEC)

Low-Voltage Electrical Panels

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

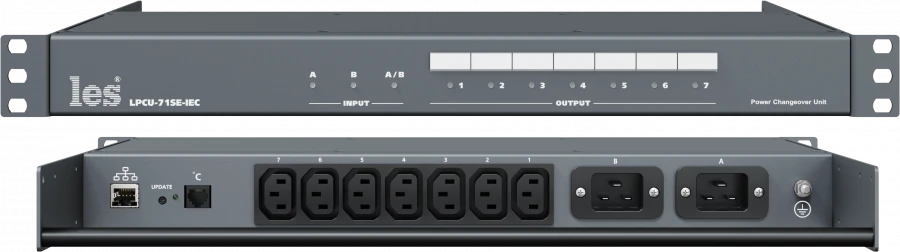

Power distribution unit for 7 IEC C13 connectors. The input is made on IEC C20 connectors. All output connectors are numbered and located on the rear panel.

Each output has an LED indication. The contacts of the output relays are normally open, when the device is switched on, the voltage on the outputs appears sequentially, after a set time interval. Control is carried out via Ethernet.

It is possible to switch off any output, sign it, get information about the voltage value at the inputs, total current consumption, temperature and relative humidity of the room where the distributor is installed (sensor is supplied separately). Side fixing angles can be turned by 180°, and the device itself is fixed on them flush or with a recess at 57 and 112 mm from the front part of the fixing angle. An unloading bar is included in the scope of delivery.

The warranty period is 36 months.

Specifications

Power supply voltage

230 V

Maximum load on each output (in the temperature range +5...+40 °C)

10 A

Maximum total load at the input of the LPCU

16 A

Type of output connectors

IEC-320-C13

Number of outputs

7 pcs

Model of input connectors

IEC-320-C20

Number of inputs

2 pcs

Type of supported Ethernet network

100 Base-TX/10 Base-T

Ethernet connector

RJ-45

Device control interface

Web interface

Operating temperature range

5...40 °C

Overall dimensions with unloading bar (W - H - D)

483...44 mm

Weight

3.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
