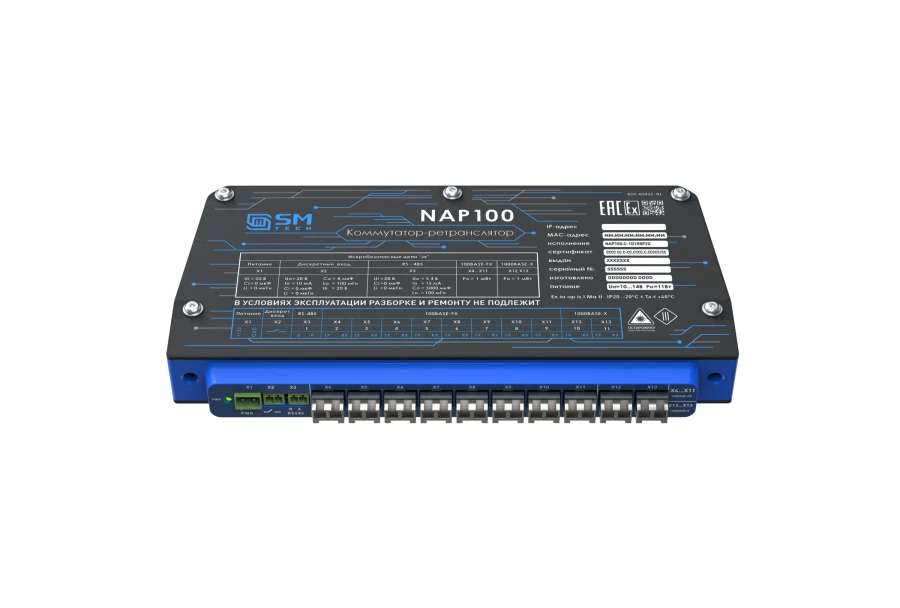

??????????-???????????? NAP100.?-1D1R8F2X

Switching Communication Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

NAP100.C - network switch of L2 level, serves for switching of separate network segments of field buses with equipment of data transmission networks on the basis of Ethernet technology for creation of single redundant, diagnosed network of object. NAP is intended for use as equipment functioning in underground workings of mines, mines and their surface structures, including dangerous by gas and (or) dust according to the explosion protection marking and operating conditions.

Technical Specifications

Safety	SSH, SSL
Mounting	Mortise in pivoting frame (in MDSC multifunctional distribution cabinet (cross cabinet))
Interfaces	Power supply: 1 pc; RS-485: 1 pc; Discrete input: 1 pc; 1000Base-X: 2 pc; 100Base-FX: 8 pc
Capacity management	Supports inbound packet filtering and outbound packet restriction. Outbound packet restriction supports all packet types. Combinations of inbound packet filter settings: Broadcast/Multicast/Flooded Uni-cast packets, Broadcast/Multicast packets.
Access protocols	SSH v1/v2, Telnet, SMbus, SNMP v2c/v3, Console (CLI)
Reservation protocols	IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP
RS485 interface operation modes	Modbus TCP/UDP, gate TCP/UDP, client/server gate UDP, RS terminal
Opportunities	NTP, LLDP, MAC-table, RTC clock, client tftp/scp, traffic filter, port mirroring, event logging, access control.
VLAN	IEEE 802.1Q port-based VLAN tag-based VLAN (256 entries)/ VLAN ID (up to 4K, VLAN ID can be assigned from 1 to 4096)
Switch type	Managed
Transmission speed	14,880 packets/sec - Ethernet port; 148,800 packets/sec for Fast Ethernet port; 1,488,000 packets/sec for Gigabit Ethernet port
Standards	IEEE802.3z 1000Base-X; IEEE802.3u 100Base-FX
Network switch layer	L2 - channel level
Power consumption	11 W
Rated supply voltage	B1/B8 2100/900 MHz V
Class of protection against electric shock according to GOST 12.2.007.0-75	III
Degree of protection against external influences according to GOST 14254-2015 (IEC 60529:2013)	IP20
Operating temperature	-20...40 °C
Explosion protection marking	Ex ia op is I Ma U
Weight of the product without packaging, not more	2.5 kg
Height	125 mm
Depth	34 mm
Width	248 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
